Hyundai Equus: Puddle lamp

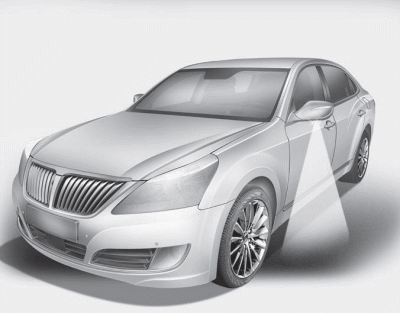

When all the doors (and trunk) are locked and closed, the puddle lamp will come on for about 15 seconds if any of the below is performed.
- When the door unlock button is pressed on the smart key.
- When you put your hand into the door handle while carrying the smart key.
- When the vehicle is approached with the smart key in possession.
Also, if the outside rearview mirror folding switch is in the AUTO position, the outside rearview mirror will unfold automatically.
