Hyundai Equus: Operation of the parking assist system - Parking assist system - Features of your vehicle - Hyundai Equus 2009-2024 Owners ManualHyundai Equus: Operation of the parking assist system

Operating condition

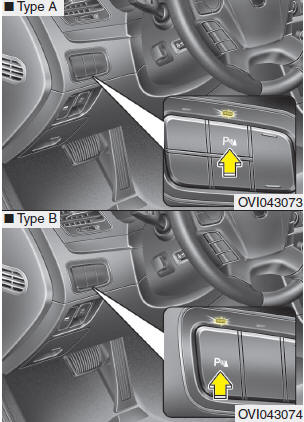

  • This system activates when the parking assist button is pressed with the Engine Start/Stop Button ON.
  • The parking assist button turns on automatically and activates the parking assist system when you shift the gear to the R (Reverse) position. It will turn off automatically when you shift out of R (Reverse) and drive above 12.4 mph (20 km/h)
  • The sensing distance while backing up is approximately 47 in. (120 cm) when you are driving less than 6.2 mph (10 km/h).
  • The sensing distance while moving forward is approximately 39 in. (100 cm) when you are driving less than 6.2 mph (10 km/h).
  • When more than two objects are sensed at the same time, the closest one will be recognized first.

✽ NOTICE

It may not operate if itТs distance from the object is already less than approximately 10 in. (25 cm) when the system is ON.

Types of warning sound and indicator

✽ NOTICE


✽ NOTICE

The indicator may differ from the illustration as objects or sensors status. If the indicator blinks, we recommend that the system be checked by an authorized EQUUS dealer.

    Parking assist system
    The parking assist system assists the driver during movement of the vehicle by chiming if any object is sensed within the distance of 39 in (100 cm) in front or 47 in (120 cm) behind the vehicle ...

    Non-operational conditions of parking assist system
    Parking assist system may not operate normally when: 1. Moisture is frozen to the sensor. (It will operate normally when moisture melts.) 2. Sensor is covered with foreign matter, such as snow or ...
