Hyundai Equus: Memory Power Seat Switch Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body Electrical System / IMS (Integrated Memory System) / Memory Power Seat Switch Components and Components Location

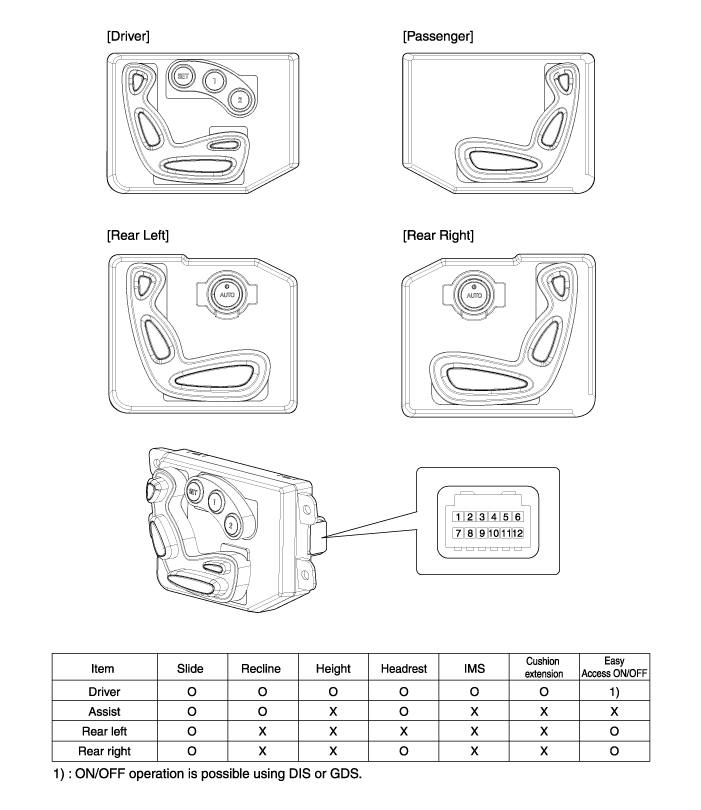

| Components |
Memory Power Seat Unit (IMS & PSM) Repair procedures
Removal
1.
Remove the negative(-) battery terminal.
2.
Remove the seats in the car.
(Refer to Body - "Front Seat Assembly")
3.
Remove the IMS & PSM module (A) after loosening 4 screws ...
Memory Power Seat Switch Schematic Diagrams
Circuit Diagram (Power Seat Control Switch)
...
