The light switch has a Headlight and a Parking light position.


The light switch has a Headlight and a Parking light position.

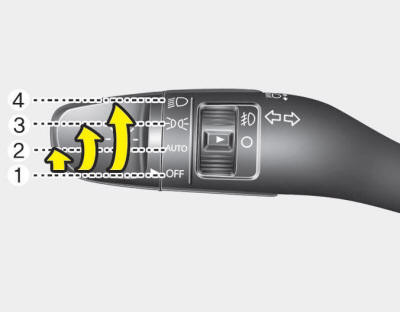

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

(1) OFF position
(2) Auto light / AFLS position
(3) Parking light position
(4) Headlight position

Auto light/AFLS position

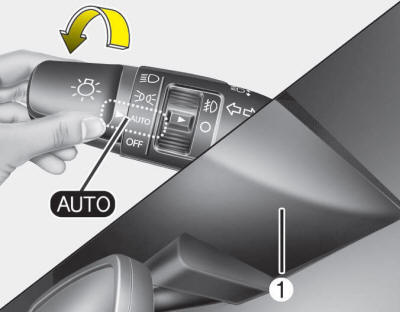

When the light switch is in the AUTO light position while the engine is running,


When the light switch is in the AUTO light position while the engine is running, the taillights and headlights will be turned ON or OFF automatically depending on the amount of light outside the vehicle.

If your vehicle is equipped with the adaptive front lighting system (AFLS), it will also operate when the headlamp is ON.

CAUTION

  • Never place anything over sensor (1) located on the instrument panel. This will ensure better auto-light system control.
  • Don’t clean the sensor using a window cleaner. The cleaner may leave a light film which could interfere with sensor operation.
  • If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.

Parking light position ( )

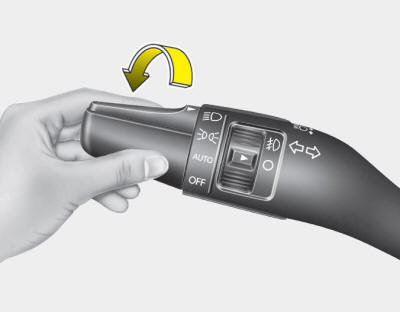

When the light switch is in the parking light position, the tail, license and


When the light switch is in the parking light position, the tail, license and instrument panel lights are ON and the tail light indicator is ON.

Headlight position ( )


When the light switch is in the headlight position, the head, tail, license and


When the light switch is in the headlight position, the head, tail, license and instrument panel lights are ON.

✽ NOTICE

The Engine Start/Stop Button must be in the ON position to turn on the headlights.

    Headlight escort function
    If you turn the Engine Start/Stop Button to the ACC or OFF position with the headlights ON, the headlights (and/or tail lights) remain on for about 5 minutes. However, if the driver’s door is open ...

    High beam operation
    To turn on the high beam headlights, push the lever away from you. Pull it back for low beams. The high beam indicator will light when the headlamp high beams are switched on. To prevent the ...
