Hyundai Equus: G Sensor Schematic Diagrams - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: G Sensor Schematic Diagrams

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Air Suspension System / G Sensor Schematic Diagrams

Circuit diagram
1.

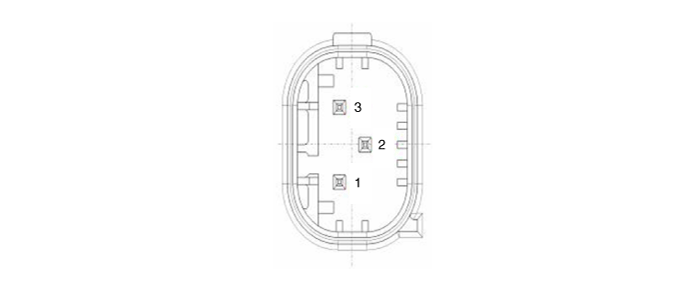

G-sensor connector

2.
G-sensor terminal function
No
Function
1
Signal
2
Ground
3
Power(5V)

3.

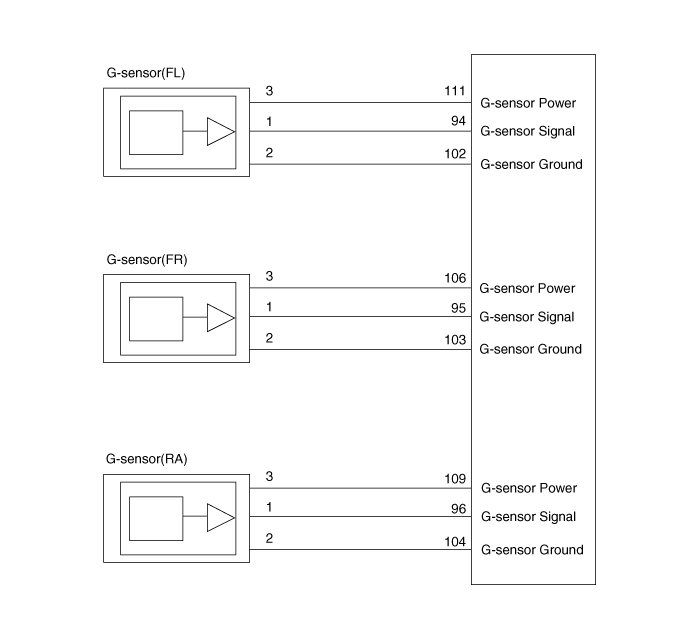

Circuit diagram

    G Sensor Description and Operation
    Description There are a total of 3 acceleration sensors in the vehicle that measure vehicle acceleration and communicate with the ECS ECU. The ECS ECU calculates the vertical vibration speed, ...

    G Sensor Repair procedures
    Removal     • be careful to avoid excessive external shock. • connectors to avoid damage to the connector pins. G-sensor FL 1. Remove the front bumper. (Refer ...
