Hyundai Equus: Front Strut Assembly Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components and Components Location

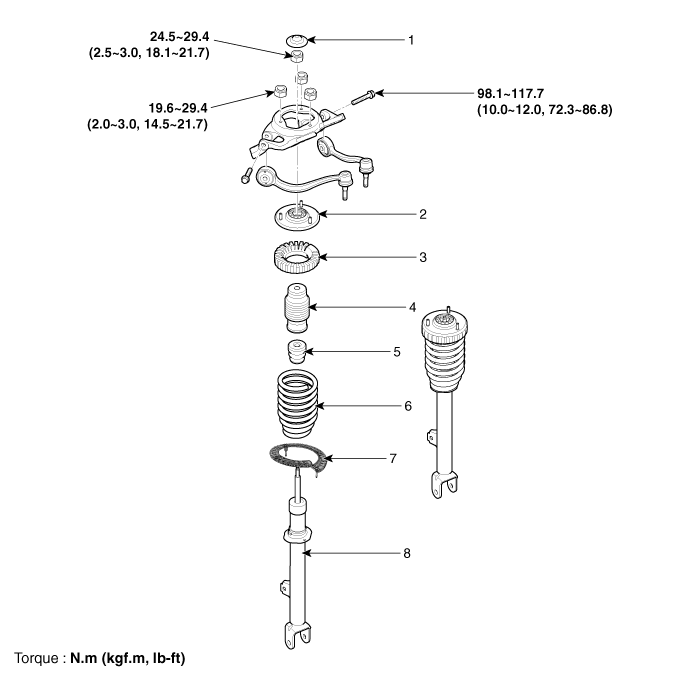

| Components |
| 1. Insulator cap 2. Insulator assembly 3. Spring upper pad 4. Dust cover | 5. Bump stopper 6. Coil spring 7. Spring lower pad 8. Shock absorber |
Components and Components Location
Components Location
1. Front strut assembly2. Front brake disc3. Tie rod end assembly4. Front sub frame5. Tension arm6. Lateral arm7. Front knuckle assembly
...
Front Strut Assembly Repair procedures
Removal
1.
Remove the front wheel and tire (A) from front hub .
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
•
Be careful not to dama ...
