Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the front seat lower protector (A).

3.
After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

4.
Remove the cap (A) and then loosen the mounting screws.
5.

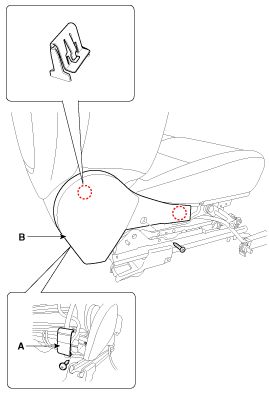

Using a screwdriver or remover, remove the front seat shield inner cover (B).

6.
Install in the reverse order of removal.

•
Replace any damage clips.
