Hyundai Equus: Crankshaft Position Sensor (CKPS) Troubleshooting
Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting
Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Engine Control/Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting
| Signal Waveform |

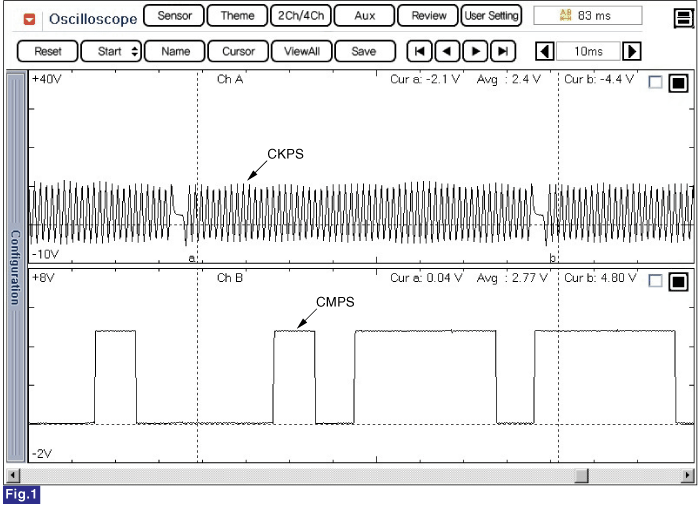

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
Crankshaft Position Sensor (CKPS) Specifications
Specification
ItemSpecificationCoil Resistance (x)774 ~ 946 [20°C (68°F)]Air cap(mm)0.5 ~ 1.5
...
Crankshaft Position Sensor (CKPS) Schematic Diagrams
Circuit Diagram
...
