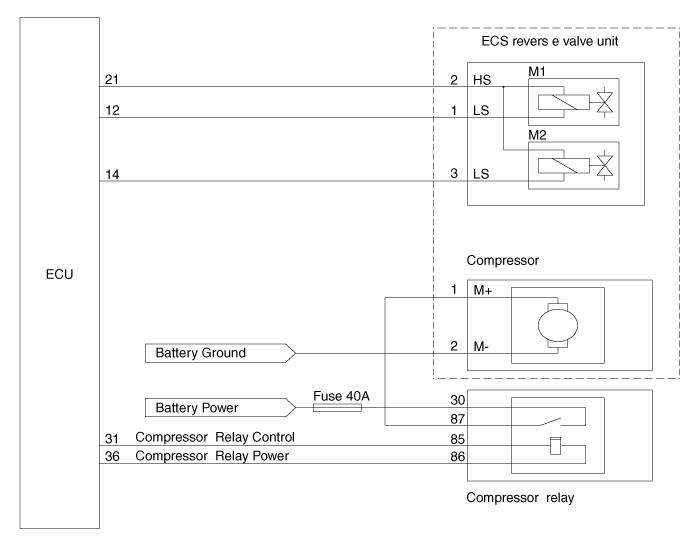

Circuit diagram
1.

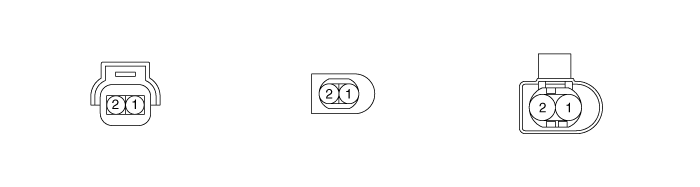

Air compressor connector

[Motor power connector (A)]
[Exhaust valve connector (B)]
[Temperature sensor connector (C)]

2.
Air compressor terminal function
[Motor power]
Terminal
Function
1
Motor power
2
Motor ground

[Solenoid valve]
Terminal
Function
1
Solenoid valve control
2
Solenoid valve power

[Temperature sensor]
Terminal
Function
1
Temperature sensor power
2
Temperature sensor signal

3.
Circuit diagram
