Hyundai Equus: Compressor Components and Components Location - Air Conditioning System - Heating, Ventilation and Air Conditioning - Hyundai Equus VI 2009-2022 Service ManualHyundai Equus: Compressor Components and Components Location

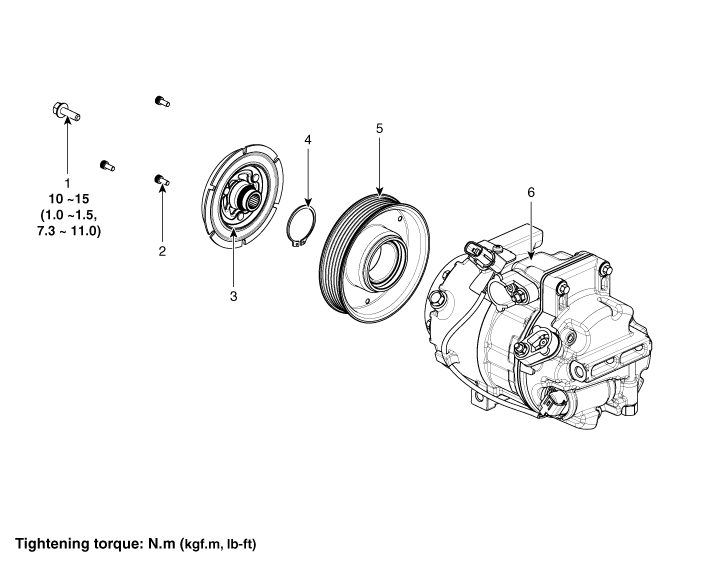

Components

1. Center Bolt
2. Hub Bolt
3. Hub Assembly
4. Snap Ring
5. Pulley
6. Compressor Assembly

    Compressor Description and Operation
    Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor changes low pressure and low tempera ...

    Compressor Repair procedures
    Removal 1. If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off. 2. Disconnect the negative ...
