| Components Location |

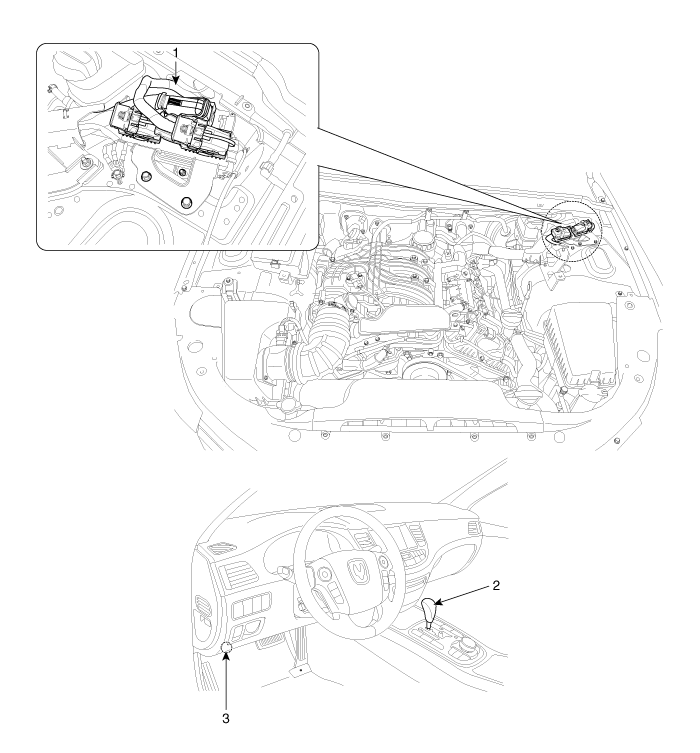

| [Vehicle Components] |
| 1. Transmission Control Module(TCM) 2. Shift lever | 3. Date Link Connector (DLC) |

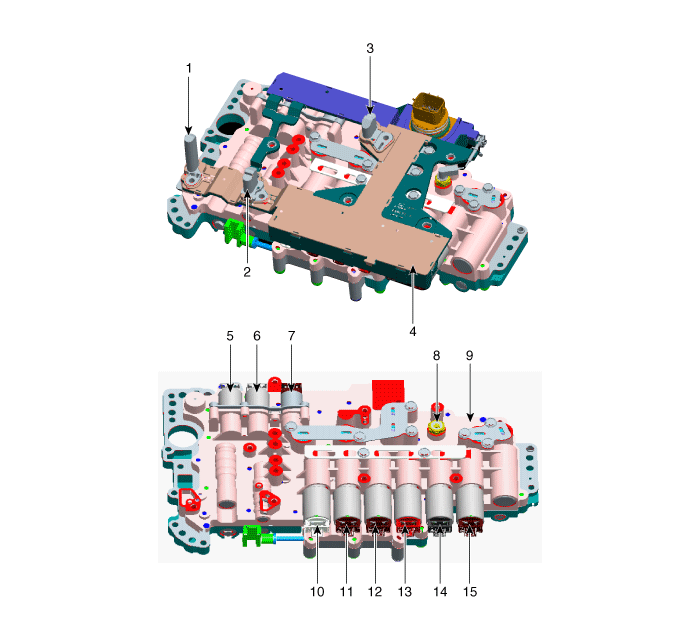

| [Transmission Components] |
| 1. Input speed sensor 2. Middle speed sensor 3. Output speed sensor 4. E Module assembly 5. Line presure control solenoid valve 6. Demper clutch control solenoid valve 7. ON/OFF solenoid valve 8. Presure switch | 9. Valve body assembly 10. 8LR/B control solenoid valve 11. 6/C control solenoid valve 12. 27/B control solenoid valve 13. 35R/C control solenoid valve 14. 4&OD/C control solenoid valve 15. UD/C control solenoid valve |
