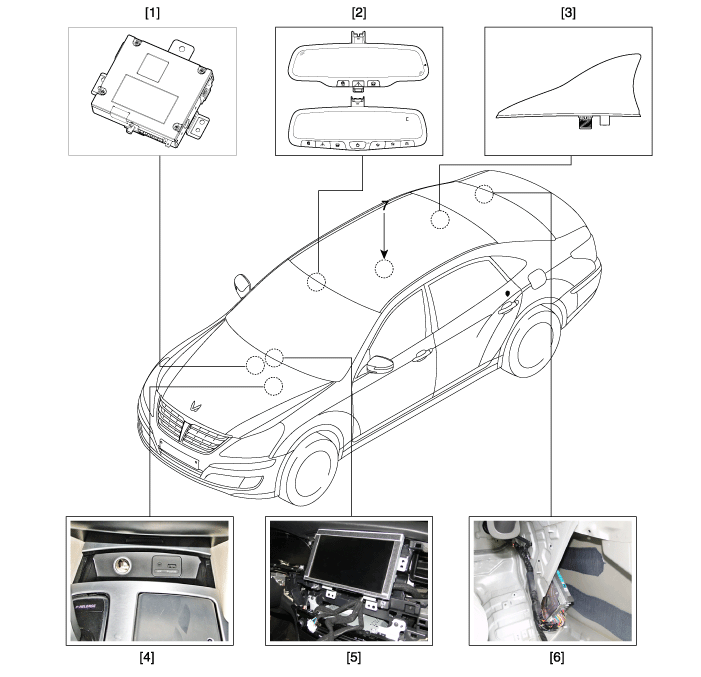

| Components |
| 1. Telematic unit (TMU) 2. BlueLink keypad 3. Roof Antenna 4. AUX jack | 5. AVN or Audio head unit 6. External amplifier 7. Mic |
