Hyundai Equus: 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic Diagrams - Automatic Transmission Control System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic Diagrams

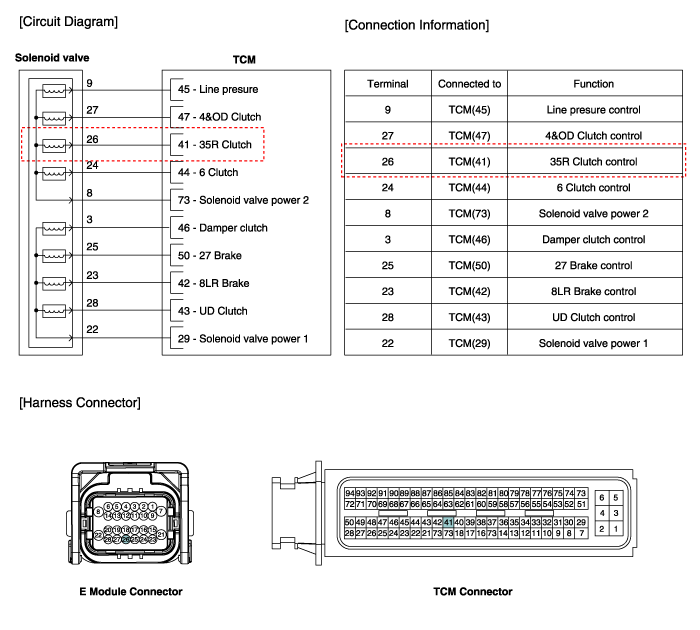

Circuit Diagram

    35R Clutch Control Solenoid Valve(35R/C_VFS) Specifications
    Specifications Direct control VFS[35R/C] x Control Type : Normal high type Control Pressure kpa (kgf/cmx, psi)0 ~ 2108.42(0 ~ 21.5, 0 ~ 305.80)Current value(mA)0~1100 Internal ...

    35R Clutch Control Solenoid Valve(35R/C_VFS) Repair procedures
    Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the res ...
