Hyundai Equus: Sedan Side Body - Body Dimensions - Body (Interior and Exterior) - Hyundai Equus VI 2009-2020 Service ManualHyundai Equus: Sedan Side Body

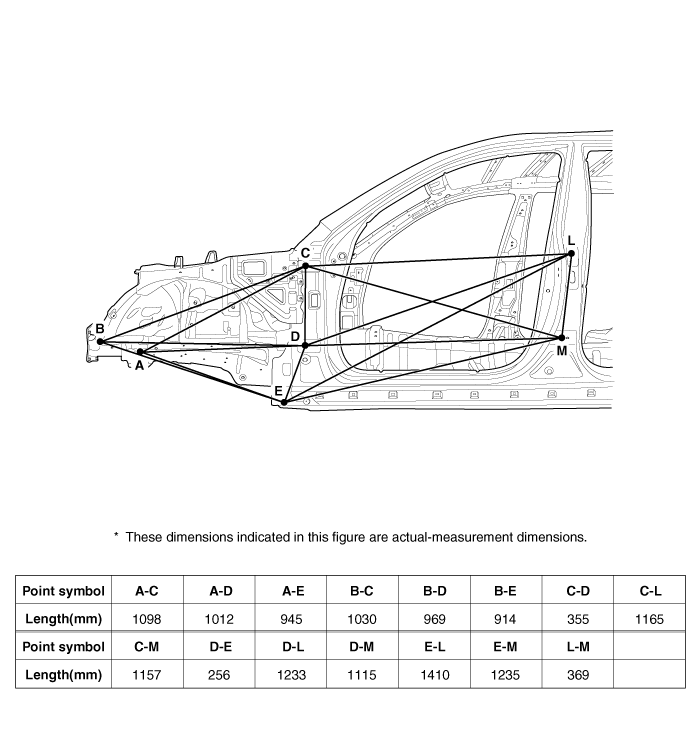

Side body A

Front side member tooling hole (O8)

Fender apron panel tooling hole (O7)

Front door hinge upper mounting hole
(O13)

Front door hinge lower mounting hole
(O13)
Fender mounting hole (O6.6)

Rear door hinge upper mounting hole
(O13)



Rear door hinge lower mounting hole
(O13)

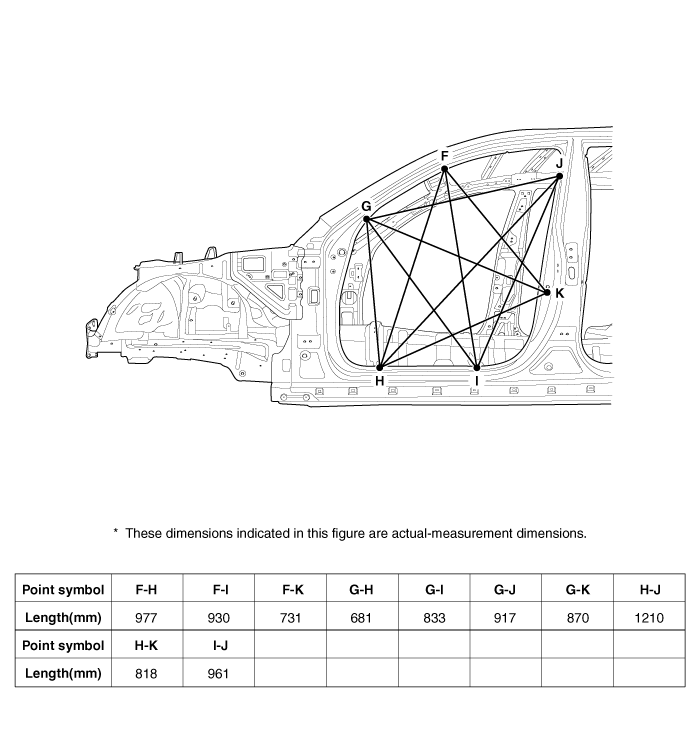

Side body B

Side outer panel notch

Side outer panel notch

Side outer panel notch

Side outer panel notch

Side outer panel notch

Front door switch mounting hole (O8)

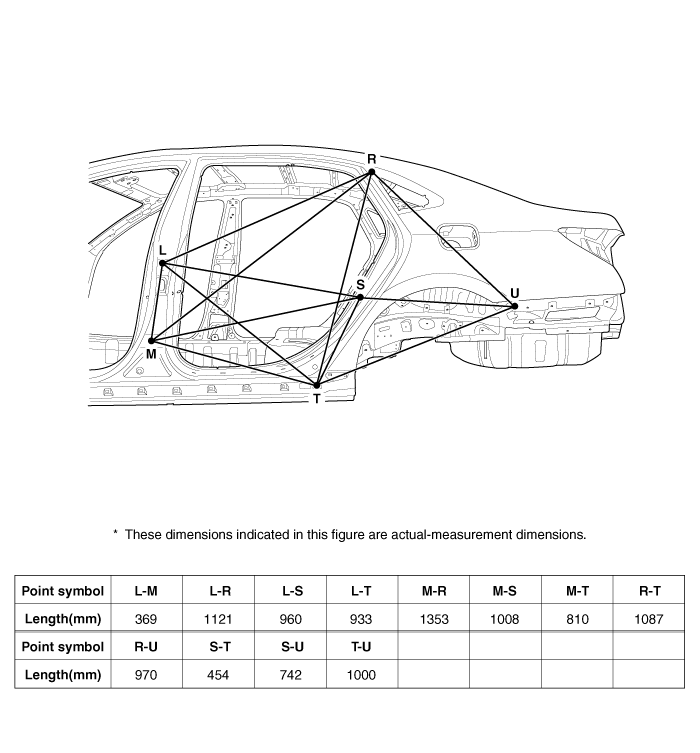

Side body C

Rear door hinge upper mounting hole
(O13)
Rear door hinge lower mounting hole
(O13)
Quarter fixed glass mounting hole (O8)

Rear door switch mounting hole (O8)

Side sill moulding mounting hole
(10X10)
Rear bumper mounting hole (O11)

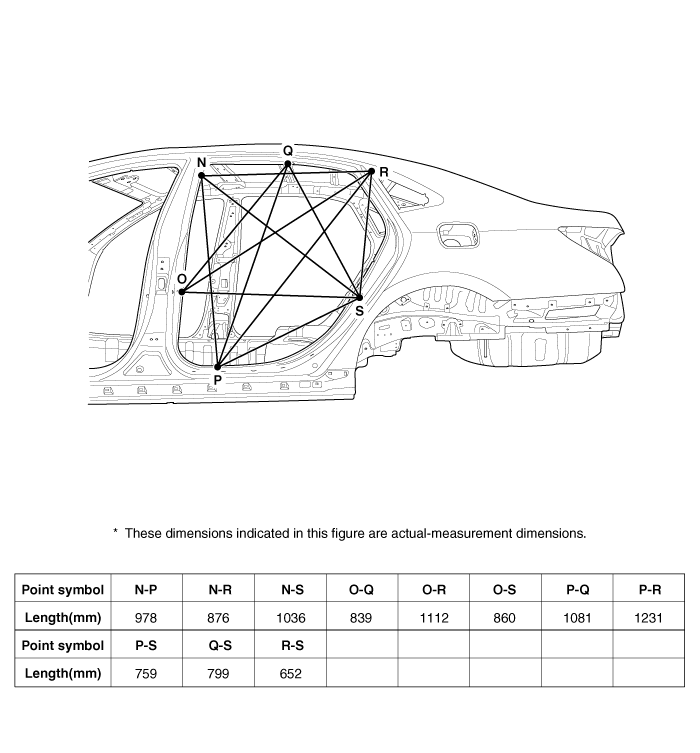

Side body D

Side outer panel notch

Side outer panel notch

Side outer panel notch

Side outer panel notch

Quarter fixed glass mounting hole (O8)

Rear door switch mounting hole (O8)
