Hyundai Equus: Sedan Interior - Body Dimensions - Body (Interior and Exterior) - Hyundai Equus VI 2009-2021 Service ManualHyundai Equus: Sedan Interior

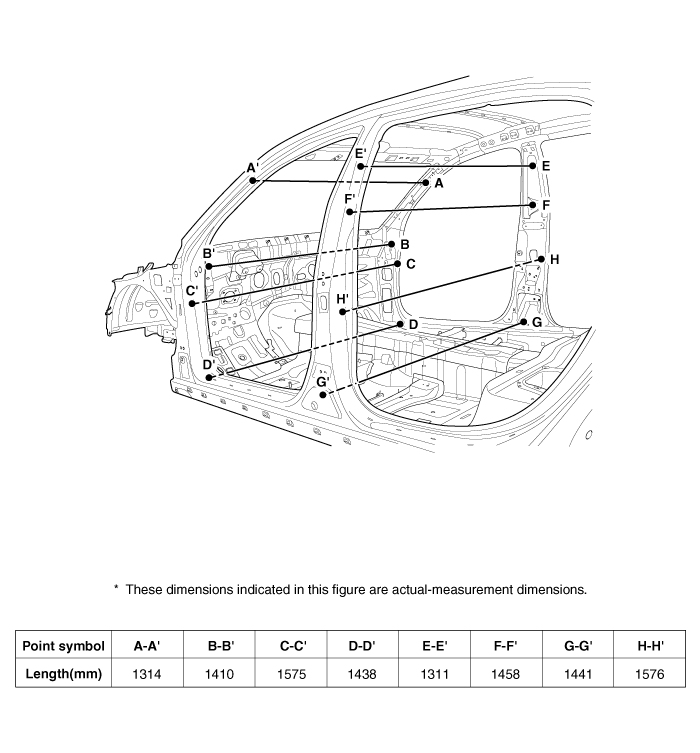

Interior A

Front inner pillar tooling hole (O9)

Cowl cross bar mounting hole (O11)

Front door checker mounting hole
(O11)

Side sill inner reinforcement tooling hole (O7)
Seat belt height adjuster upper mounting hole (O15)
Seat belt height adjuster lower mounting hole (O15)


Seat belt pretensioner mounting hole
(O12)
Rear door checker mounting hole
(O11)

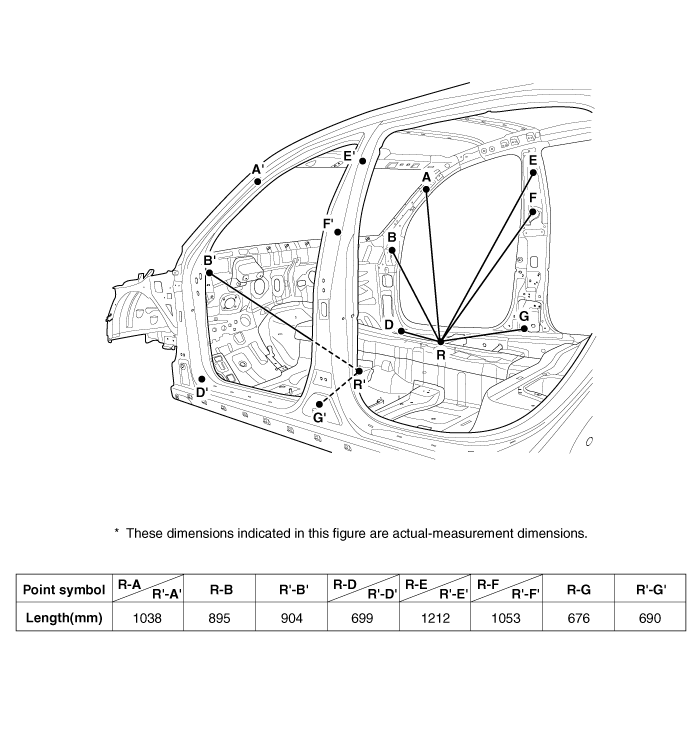

Interior B

Front inner pillar tooling hole (O9)

Cowl cross bar mounting hole (O11)

Side sill inner reinforcement tooling
hole (O7)

Seat belt height adjuster upper mounting hole (O15)
Seat belt height adjuster lower mounting hole (O15)
Seat belt pretensioner mounting hole
(O12)



Front seat cross member tooling hole
(O10)

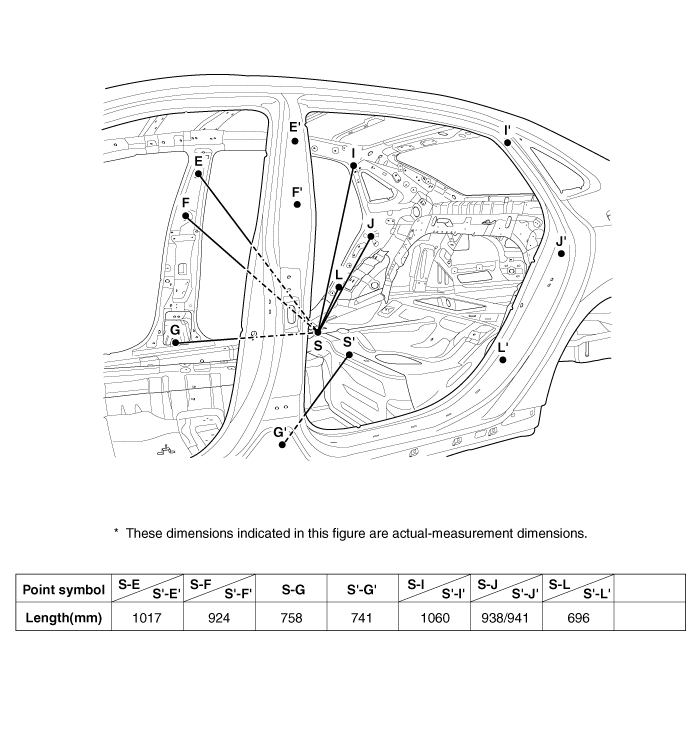

Interior C

Seat belt height adjuster upper mounting hole (O15)
Seat belt height adjuster lower mounting hole (O15)
Seat belt pretensioner mounting hole
(O12)

Rear door checker mounting hole
(O11)
Quarter inner panel tooling hole (O9)

Quarter inner panel tooling hole
(O6.6)

Rear door striker mounting hole
(O12.8)
Quarter inner panel tooling hole (O12)

Floor panel tooling hole (O16)

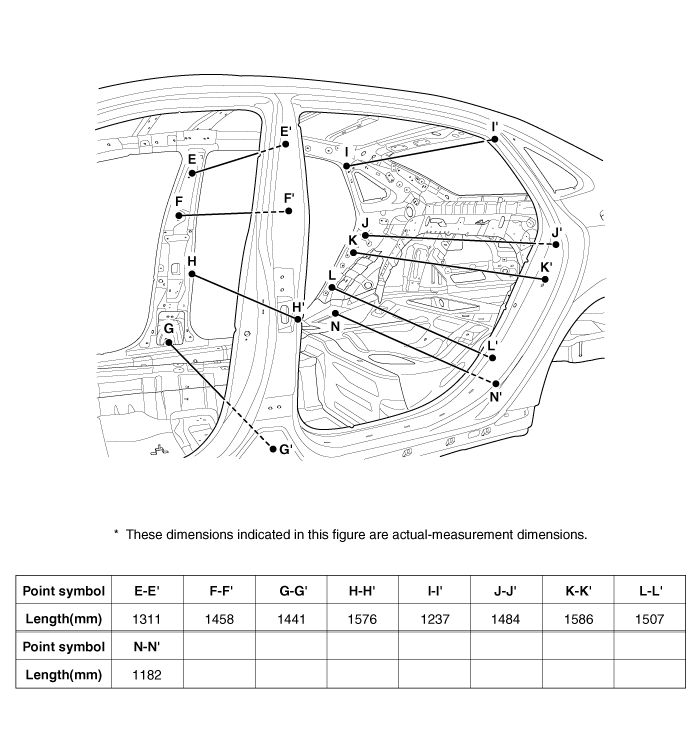

Interior D

Seat belt height adjuster upper mounting hole (O15)
Seat belt height adjuster lower mounting hole (O15)
Seat belt pretensioner mounting hole
(O12)

Quarter inner panel tooling hole (O9)

Quarter inner panel tooling hole (O6.6)

Quarter inner panel tooling hole (O12)



Floor panel tooling hole (O9)

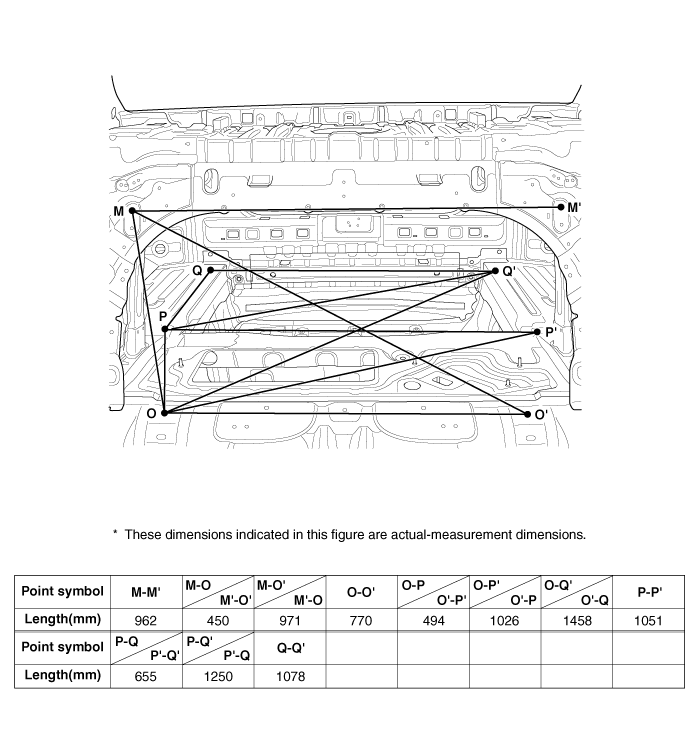

Interior E

Rear package tray panel tooling hole
(O9)
Floor panel tooling hole (O9)

Floor panel tooling hole (O6.6)



Spare tire well tooling hole (O6.6)




    Sedan Side Body
    Side body A Front side member tooling hole (O8)Fender apron panel tooling hole (O7)Front door hinge upper mounting hole (O13)Front door hinge lower mounting hole (O13) Fender mounting hole (O6.6 ...

    Sedan Rear Body
    Rear body Roof panel rear cornerSide outer panel rear cornerRear parkage tray panel tooling hole(O23)Side outer panel rear cornerTooling hole (14X10)Tooling hole (O10) ...
