| Inspection |
Slide Motor Limit Switch
| 1. |
Disconnect the limit switch (A) and operate the limit switch. |
| 2. |
Check for continuity between the terminals. |
| 3. |
Make sure that the seat operation is normal in the reverse after the maximum operation. |
| 4. |
If there is an abnormality, replace the limit switch.
|
Reclining Motor Limit Switch
| 1. |
Disconnect the limit switch and operate the limit switch. |
| 2. |
Check for continuity between the terminals. |
| 3. |
Make sure that the seat operation is normal in the reverse after the maximum operation. |
| 4. |
If there is an abnormality, replace the limit switch.
|

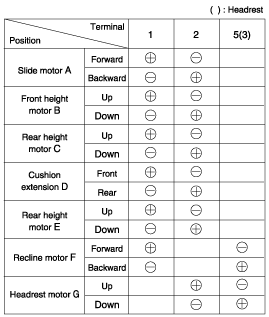

Power Seat Motor
| 1. |
Disconnect the connectors for each motor.
|
| 2. |
With the battery connected directly to the motor terminals, check if the motors run smoothly. |
| 3. |
Reverse the connections and check that the motor turns in reverse. |
| 4. |
If there is an abnormality, replace the motors.
[Driver (IMS)]
[Assist (Limousine 5:5 Option)]
[Assist (Except For Limousine 5:5 Option)]
[Rear Assist]
|
Components and Components Location
Component Location
1. Slide motor2. Front Height motor3. Rear Height motor4. Recline motor5. Headrest motor6. Cushion extension motor7. Air lumbar support switch8. Air lumbar support pump9. Air l ...
Air Lumber Support Switch Repair procedures
Inspection
1.
Disconnect the negative(-) battery terminal.
2.
Remove the shield outer cover.
(Refer to Body - "Front Seat Shield Outer Cover")
3.
Disconnect the power seat air lumber supp ...
