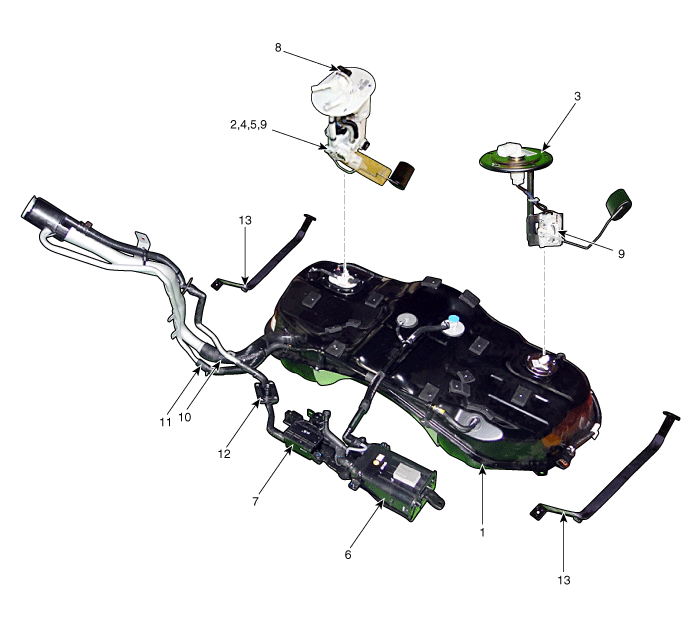

| Components Location |
| 1. Fuel tank 2. Fuel pump 3. Sub fuel sender 4. Fuel filter 5. Over Pressure Valve (OPV) 6. Canister 7. Fuel tank air filter | 8. Fuel Pressure Sensor (FPS) 9. Fuel Level Sensor (FLS) 10. Fuel Filler Hose 11. Leveling Hose 12. Ventilation Hose 13. Fuel Tank Band |

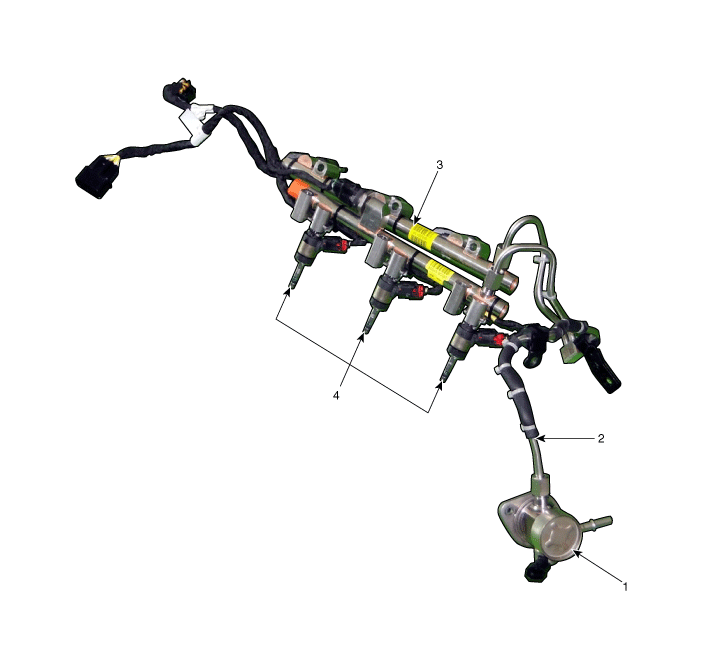

| [High Pressure Fuel Line] |
| 1. High Pressure Fuel Pump 2. High Pressure Fuel Pipe | 3. Delivery Pipe 4. Injector |
In case of removing the high pressure fuel pump, high
pressure fuel pipe, delivery pipe, and injector, there may be injury
caused by leakage of the high pressure fuel. So don’t do any repair
work right after engine stops. |
Troubleshooting
Troubleshooting
•
Check the fuel pressure after replacing parts.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
...
