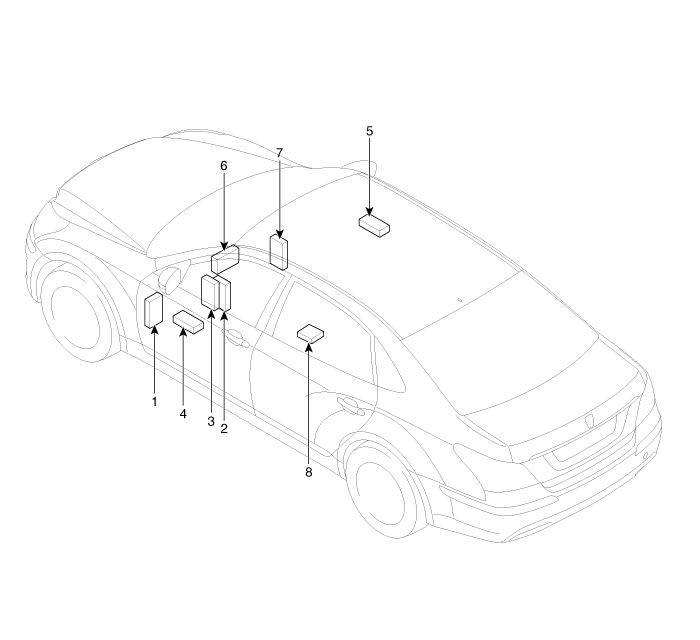

| Components Location |
| 1. Smart Junction Box (SJB) 2 . Body Control Module (BCM) 3 . Smart Key Unit (SMK) 4 . Driver Door Module (DDM) | 5 . Assis Door Module (ADM) 6 . Cluster (CLU) 7 . Around View Monitoring (AVM) 8 . Memory seat unit (IMS) |
| Components |
Connector Pin Information
| No. | Connector A | Connector B | Connector C |
| 1 | Battery | B CAN high | - |
| 2 | IGN 2 | M CAN high | - |
| 3 | - | C CAN high | - |
| 4 | - | ATM solenoid | - |
| 5 | Trunk open switch | PAS ON indicator | - |
| 6 | - | - | - |
| 7 | PAS OFF switch | LIN PAS data | - |
| 8 | - | Defogger relay | - |
| 9 | - | B CAN low | - |
| 10 | - | M CAN low | Rear room lamp |
| 11 | Crash door unlock | C CAN low | Foot lamp |
| 12 | Diagnosis | Defogger indicator | Rear curtain power |
| 13 | GND 1 | Security indicator | x |
| 14 | IGN 1 | Assist seat belt indicator | |
| 15 | ACC | Rain sensor data (LIN) | |
| 16 | - | Front room lamp | |
| 17 | - | x | |
| 18 | HBA (option) | ||
| 19 | - | ||
| 20 | - | ||
| 21 | Defogger switch | ||
| 22 | - | ||
| 23 | Parking brake switch | ||
| 24 | - | ||
| 25 | - | ||
| 26 | GND 2 |
Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-30°C ~ 75°C (-4°F ~ 158°F)Dark current4.5 mA
...
Schematic Diagrams
Circuit Diagram
...
