Hyundai Equus: 6 Speed Clutch Control Solenoid Valve Schematic Diagrams - Automatic Transmission Control System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2020 Service ManualHyundai Equus: 6 Speed Clutch Control Solenoid Valve Schematic Diagrams

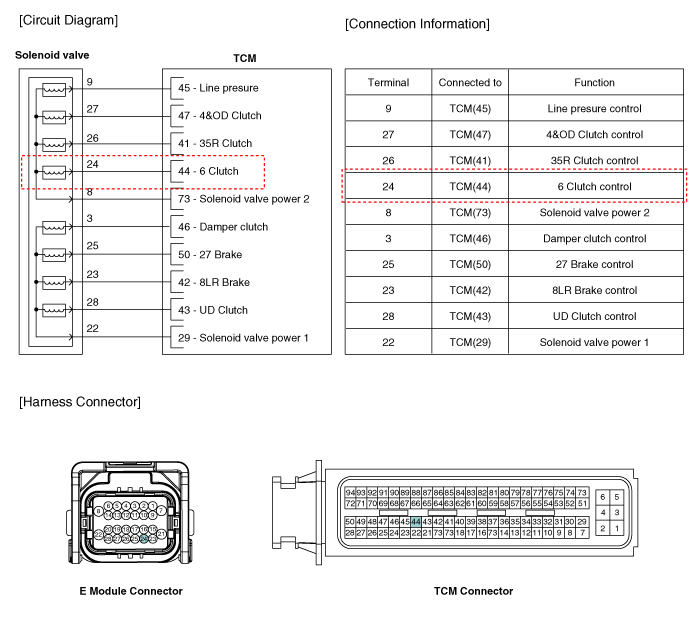

Circuit Diagram

    6 Speed Clutch Control Solenoid Valve Specifications
    Specifications Direct control VFS[6/C] x Control type : Normal low type Control Pressure kpa (kgf/cmx, psi)0~1569.06 (0~16,0~227.57)Current value(mA)0~1100 Internal resistance( ...

    6 Speed Clutch Control Solenoid Valve Repair procedures
    Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the res ...
