Hyundai Equus: Tire specification and pressure label
Second generation VI (2009–2026) / Hyundai Equus 2009-2026 Owners Manual / Specifications, Consumer information and Reporting safety defects / Tire specification and pressure label
The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

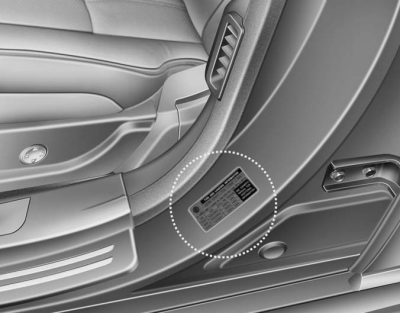

The tire label located on the driver's side center pillar gives the tire pressures recommended for your car.
Vehicle certification label
The vehicle certification label attached on the driver’s side center pillar gives
the vehicle identification number (VIN). ...
Engine number
The engine number is stamped on the engine block as shown in the drawing. ...
