Hyundai Equus: Smart Cruise Control Switch Schematic Diagrams
Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Engine Electrical System / Smart Cruise Control System / Smart Cruise Control Switch Schematic Diagrams
Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Engine Electrical System / Smart Cruise Control System / Smart Cruise Control Switch Schematic Diagrams

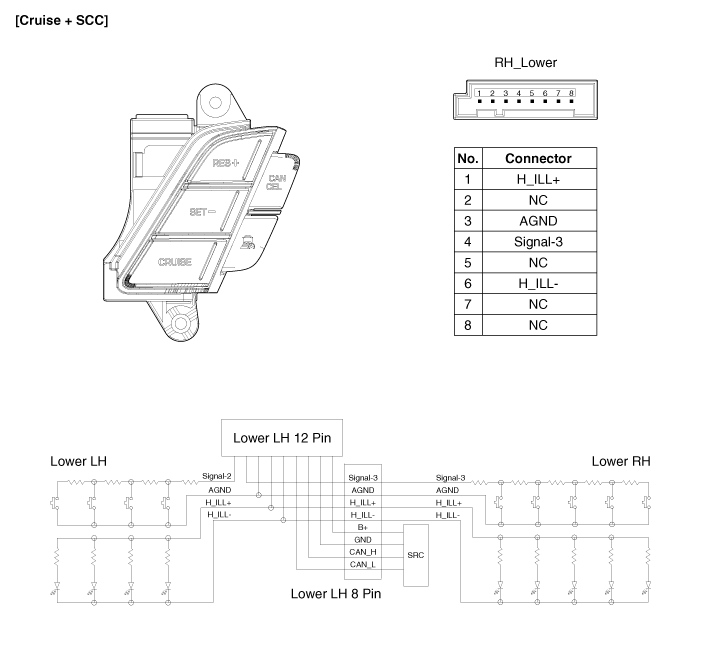

| Circuit Diagram |
Smart Cruise Control Switch Components and Components Location
Components
1. SET - switch2. RES + switch3. SCC switch4. CANCEL switch5. CRUISE switch
...
Smart Cruise Control Switch Repair procedures
Inspection
[Measuring Resistance]
1.
Disconnect the cruise control switch connector from the control switch.
2.
Measure resistance between terminals on the control switch when each function ...
See also:
Driver Door Module (DDM) Description and Operation
Description
1.
Driver Door Module (DDM)
(1)
Main features
ItemExplanationNotesInstallation positon Driver side door trimComponent configuration
1.
Embedded with CAN Communication IC
2.
...
Smart cruise control speed
To set cruise control speed:
1. Push the CRUISE (ON·OFF) button on the steering wheel to turn the system on.
The CRUISE indicator light in the instrument cluster will illuminate.
2. Accelerat ...
