Hyundai Equus: ETC (Electronic Throttle Control) System Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Equus VI 2009-2022 Service ManualHyundai Equus: ETC (Electronic Throttle Control) System Schematic Diagrams

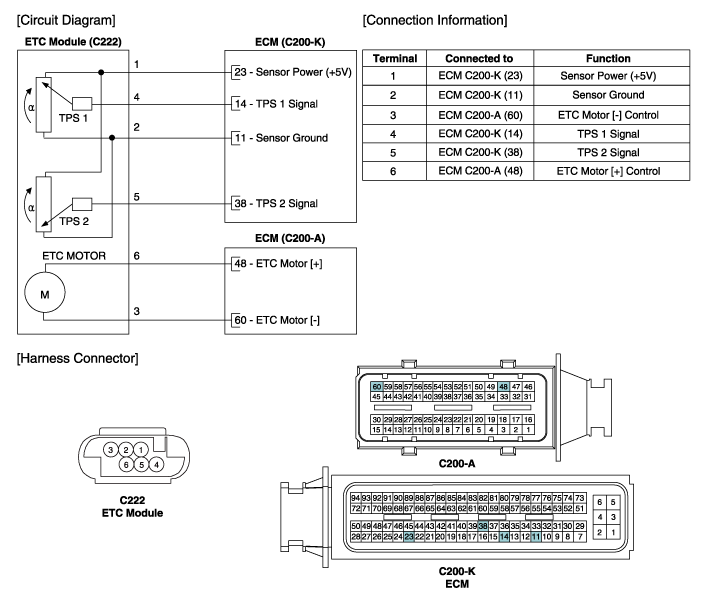

Circuit Diagram

    ETC (Electronic Throttle Control) System Specifications
    Specification [Throttle Position Sensor (TPS)] Throttle angle(°)Output Voltage (V)TPS1TPS200.54.5100.964.05201.413.59301.873.14402.322.68502.782.23603.231.77703.691.32804.140.86904.60.41984.650.35 ...

    ETC (Electronic Throttle Control) System Repair procedures
    Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T. Throttle ...
