Hyundai Equus: Cup holder
WARNING - Hot liquids
- Do not place uncovered cups of hot liquid in the cup holder while the vehicle is in motion. If the hot liquid spills, you could be burned. Such a burn to the driver could lead to loss of control of the vehicle.
- To reduce the risk of personal injury in the event of sudden stop or collision, do not place uncovered or unsecured bottles, glasses, cans, etc., in the cup holder while the vehicle is in motion.
WARNING
Keep cans or bottles out of direct sun light and do not put them in a vehicle that is heated up. It may explode.

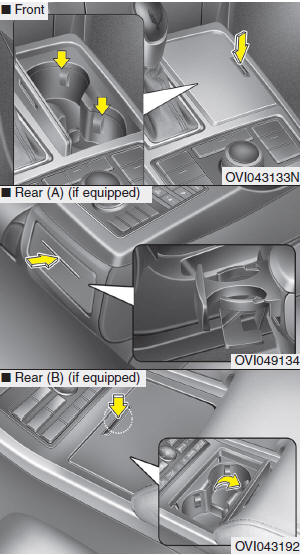

Cups or small beverage cans may be placed in the cup holders.
Front
To open the cover, press the cover and it will slowly open.
Rear (A)
To open the cover, press the button and it will slowly open.
Rear (B) (if equipped)
To open the cover, press the cover and it will slowly open.
Sunvisor

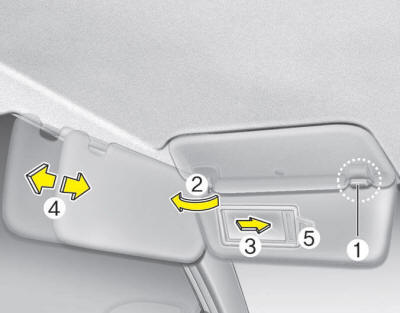

Use the sunvisor to shield direct light through the front or side windows.
To use the sunvisor, pull it downward. To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the visor and slide the mirror cover (3). Adjust the sunvisor extension forward or backward (4).
The ticket holder (5) is provided for holding a tollgate ticket.
CAUTION - Vanity mirror lamp
Close the vanity mirror cover securely and return the sunvisor to its original position after use. If the vanity mirror is not closed securely, the lamp will stay on and could result in battery discharge and possible sunvisor damage.
WARNING
For your safety, do not obstruct your vision when using the sunvisor.
Ashtray
WARNING - Ashtray use
Do not use the vehicle’s ashtrays as waste receptacles.
Putting lit cigarettes or matches in an ashtray with other combustible
materials may cause a fire.
Front
...
Rear vanity mirror (if equipped)
To use the rear vanity mirror, press the cover and it will slowly open and the
mirror lamp will turn on.
CAUTION
Close the mirror cover securely. If the mirror cover is not closed, the lamp
...
