Components Location

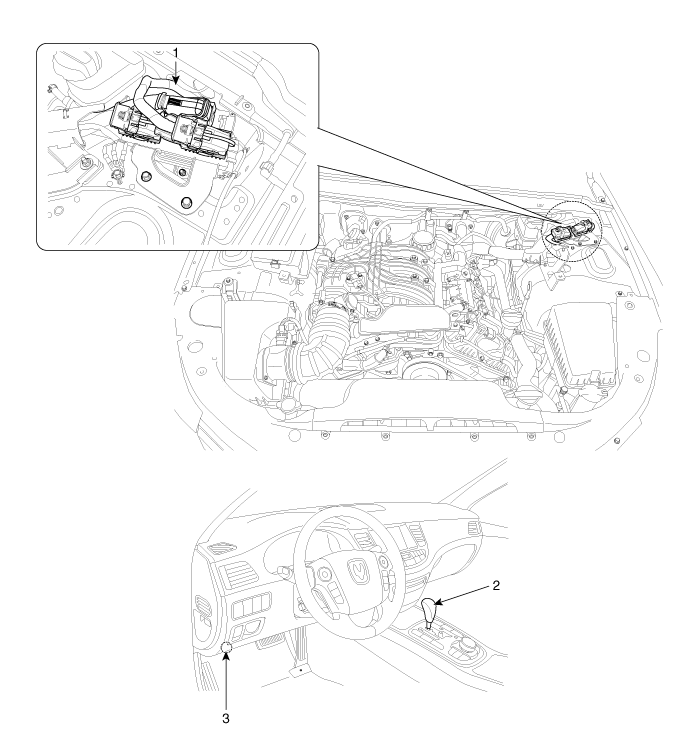

[Vehicle Components]

1. Transmission Control Module(TCM)
2. Shift lever
3. Date Link Connector (DLC)

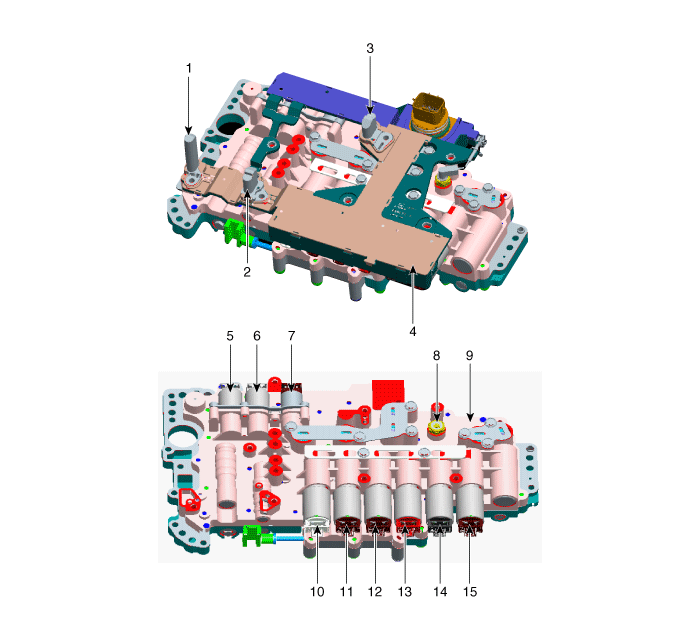

[Transmission Components]

1. Input speed sensor
2. Middle speed sensor
3. Output speed sensor
4. E Module assembly
5. Line presure control solenoid valve
6. Demper clutch control solenoid valve
7. ON/OFF solenoid valve
8. Presure switch
9. Valve body assembly
10. 8LR/B control solenoid valve
11. 6/C control solenoid valve
12. 27/B control solenoid valve
13. 35R/C control solenoid valve
14. 4&OD/C control solenoid valve
15. UD/C control solenoid valve
