Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body Electrical System / Multifunction Switch / Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body Electrical System / Multifunction Switch / Components and Components Location

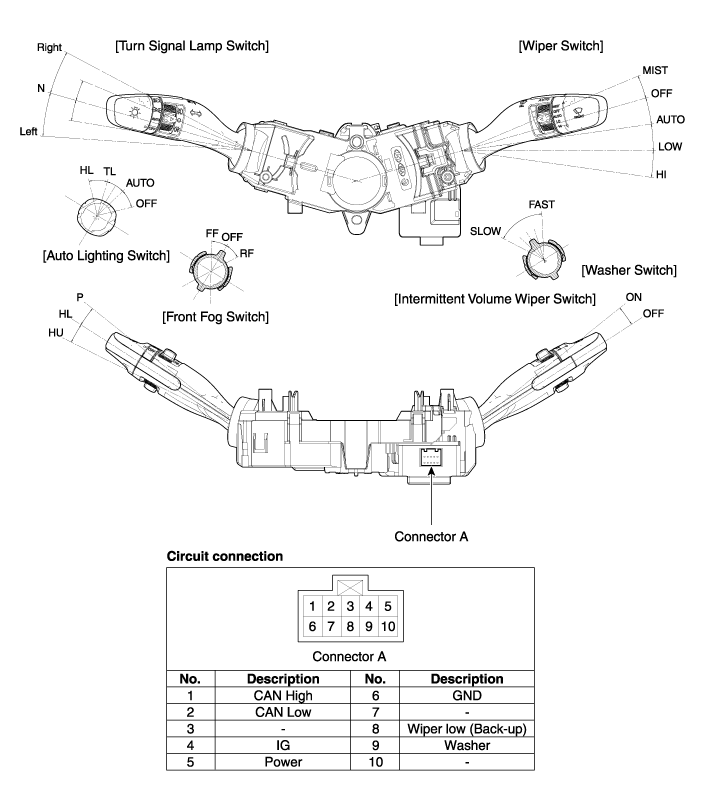

| Component |
Specifications
Specifications
ItemsSpecificationsRated voltageDC 12VOperating temperature range-22 ~ +176°F (-30°C ~ +80°C)Rated loadWasher switch0.2A (Relay load)
...
Schematic Diagrams
Circuit Diagram
...
