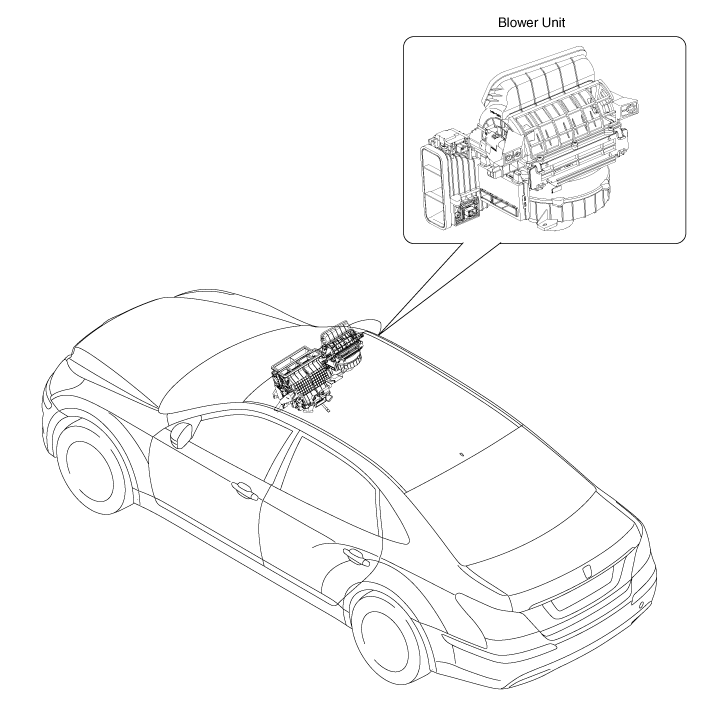

| Component Location |
| Components |

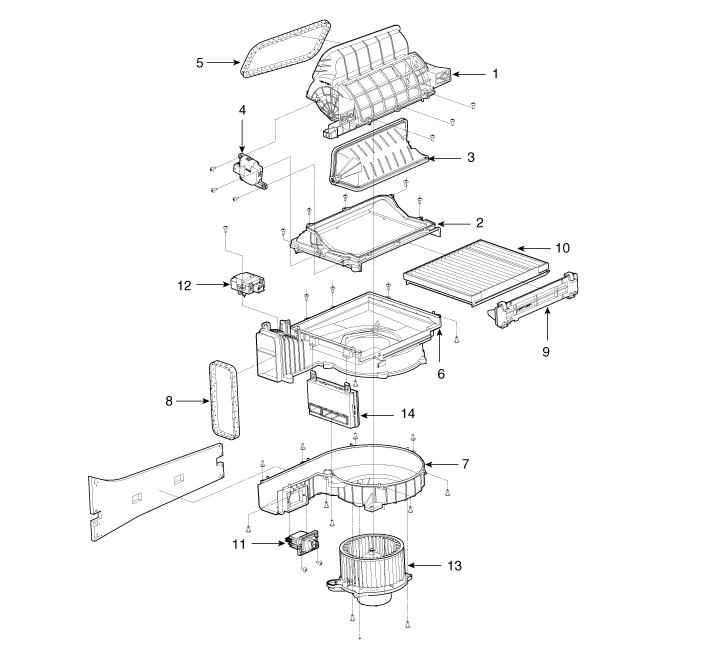

| 1. Intake Duct Case 2. Intake Duct Case (A) 3. Intake Door 4. Intake Actuator 5. Seal 6. Blower Upper Case 7. Blower Lower Case | 8. Seal 9. Climate Control Air Filter Cover 10. Climate Control Air Filter 11. Power Mosfet 12. Cluster Ion Generator 13. Blower Motor 14. Control Unit |
Blower
...
Blower Unit Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the heater and blower assembly.
(Refer to Heater - "Heater Unit")
3.
Separate the blower unit (A) from the heater un ...
