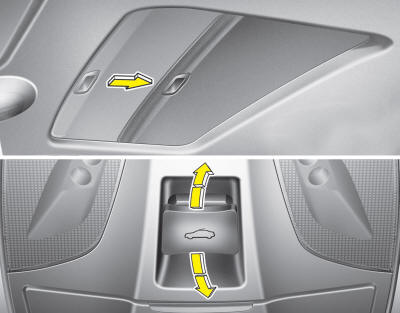

The Engine Start/Stop Button must be in the ON position before you can open or close the sunroof.
Pressing the sunroof control lever backward or forward momentarily to the second detent position completely opens or closes the sunroof even when the switch is released. To stop the sunroof at the desired position while the sunroof is in operation, press the sunroof control lever backward or forward and release the switch.
The sunroof can also be opened or closed by pressing the sunroof control lever backward or forward to the first detent position. But the sunroof opens or closes only when you press the sunroof control lever.
Automatic Reverse

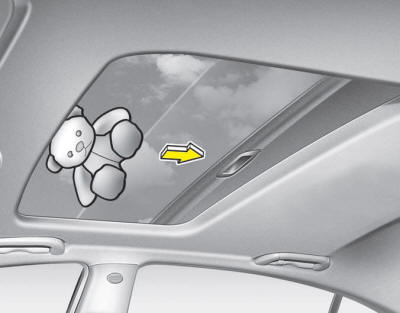

If the sunroof senses any obstacle while it is closing automatically, it will reverse direction then stop to allow the object to be cleared.
WARNING
Objects less than 0.16 in. (4 mm) in diameter caught between the sunroof glass and the sunroof sunshade may not be detected by the automatic reverse and the sunroof glass will not stop and reverse direction.
