Hyundai Equus: Repair procedures - Floor Carpet - Body (Interior and Exterior) - Hyundai Equus VI 2009-2023 Service ManualHyundai Equus: Repair procedures

Second generation VI (2009–2023) / Hyundai Equus VI 2009-2023 Service Manual / Body (Interior and Exterior) / Floor Carpet / Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
4.
Remove the rear seat frame assembly.
(Refer to Rear Seat - "Rear Seat Frame Assembly")
5.
Remove the front pillar trim.
(Refer to Interior Trim - "Front Pillar Trim")
6.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
7.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
8.
Using a screwdriver or remover, remove the frame id blanking bracket (A).
9.
Remove the accelerator pedal.
(Refer to Engine Control/Fuel System - "Accelerator Pedal")
10.
Remove the floor carpet assembly (B).
11.
Remove the tunnel pad (C).
12.
Install in the reverse order of removal.

•
Replace any damage clips.

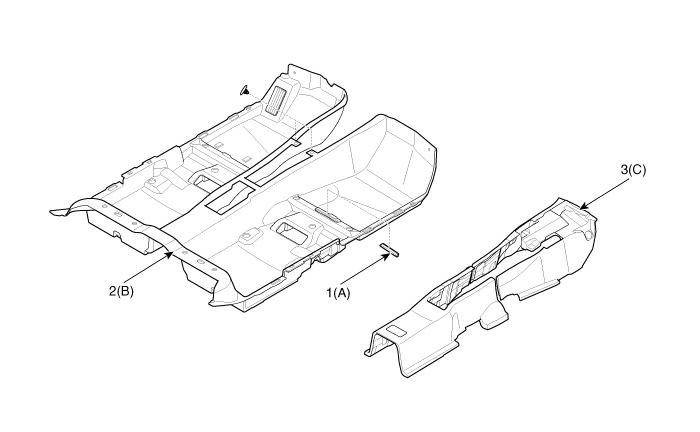

1. Frame id blanking bracket
2. Floor carpet assembly
3. Tunnel pad
