The defroster heats the window to remove frost, fog and thin ice from the rear window, while the engine is running.

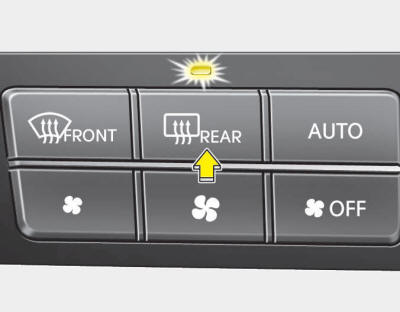

To activate the rear window defroster, press the rear window defroster button located in the center facia switch panel. The indicator on the rear window defroster button illuminates when the defroster is ON.
If there is heavy accumulation of snow on the rear window, brush it off before operating the rear defroster.
The rear window defroster automatically turns off after approximately 20 minutes or when the ignition switch is turned off. To turn off the defroster, press the rear window defroster button again.
Outside rearview mirror defroster
If your vehicle is equipped with the outside rearview mirror defrosters, they will operate at the same time you turn on the rear window defroster.
Scheduled maintenance service
Follow Normal Maintenance Schedule if the vehicle is usually operated where none
of the following conditions apply.
If any of the following conditions apply, follow Maintenance Under Severe Usage
...
Engine Coolant Temperature Sensor (ECTS) Description and Operation
Description
Engine Coolant Temperature Sensor (ECTS) is located in the
engine coolant passage of the cylinder head for detecting the engine
coolant temperature. The ECTS uses a thermistor that ...
Components and Components Location
Components
1. Glass panel2. Decoration cover3. Drip link4. Guide assembly5. Drip rail6. Sunshade7. Defector8. Defector link 9. Seal tape10. Motor11. Frame12. Set plate
...
