Adjusting Instrument Cluster Illumination

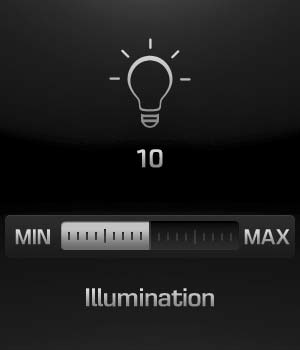

The brightness of the instrument panel illumination can be adjusted by pressing the illumination control buttons (“+” or “-”) when the Engine Start/Stop Button is ON or the tale lights are turned on.
- The brightness has 20 levels : 1 (MIN) ~ 20 (MAX)
- If you hold the illumination control button (“+” or “-”), the brightness will be changed continuously.
- If the brightness reaches to the maximum or minimum level, an alarm will sound.
Instrument cluster
1. Tachometer
2. Speedometer
3. Engine Coolant Temperature Gauge
4. Fuel Gauge
5. Odometer
6. LCD Display (Including trip computer)
1. Tachometer
2. Speedometer
3. Engine Coolant Temperatu ...
LCD Display Control
The LCD display modes can be changed by using the control buttons on the steering
wheel.
1) button : Changing LCD modes
(right to left), or returning to previous position
(2) but ...
