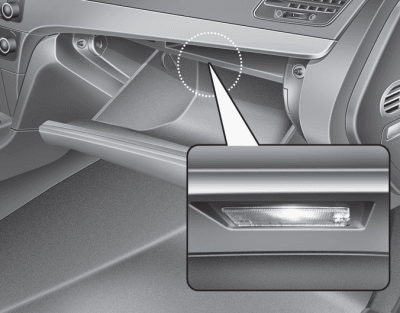

The glove box lamp comes on when the glove box is opened.
CAUTION
To prevent unnecessary charging system drain, close the glove box securely after using the glove box.
