Hyundai Equus: Fuse/relay panel description - Fuses - Maintenance - Hyundai Equus 2009-2023 Owners ManualHyundai Equus: Fuse/relay panel description

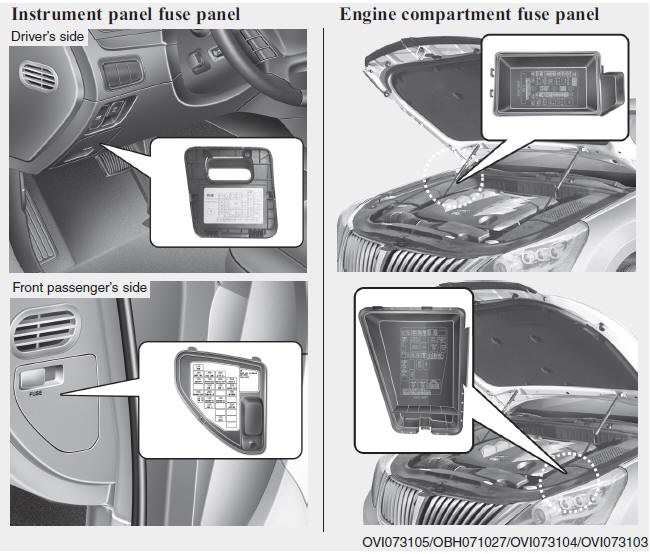

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE


✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

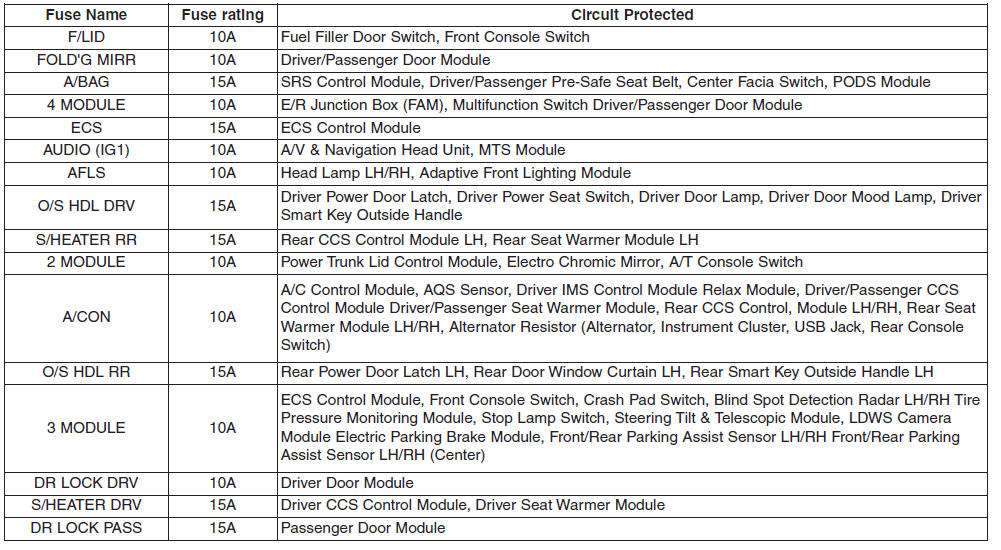

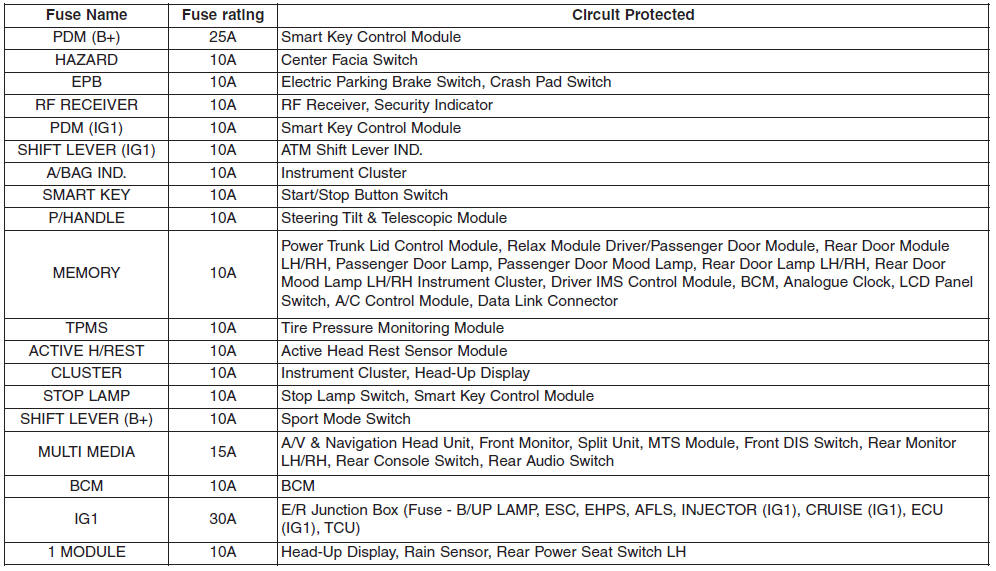

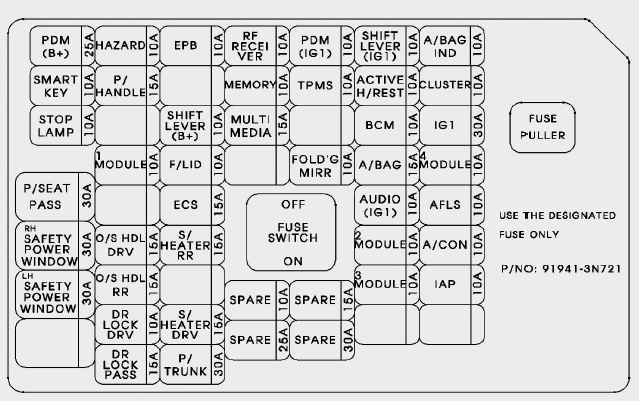

Driver’s side instrument fuse panel

Instrument panel (Driver’s side fuse panel)


Instrument panel (Driver’s side fuse panel)

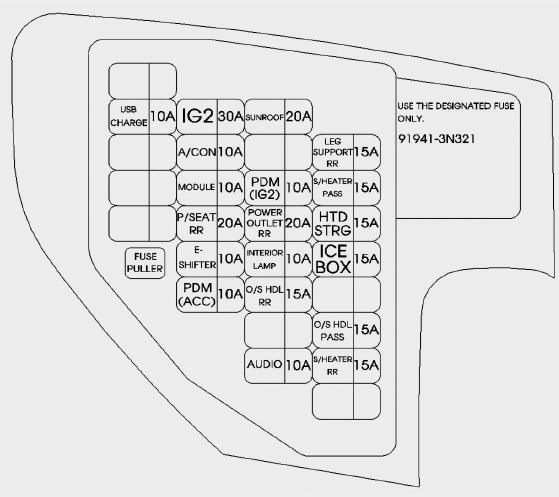

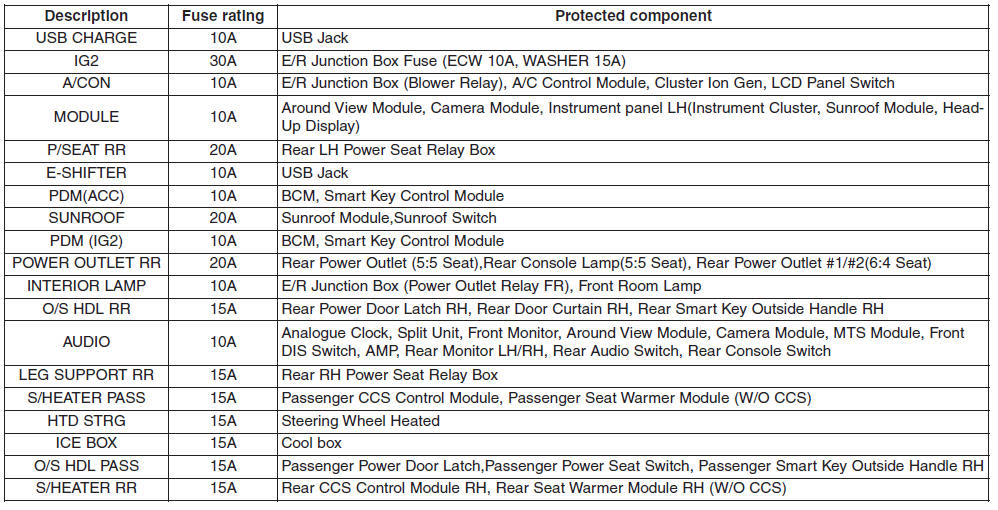

Passenger’s side instrument fuse panel


Passenger’s side instrument fuse panel

Instrument panel (Passenger’s side fuse panel)


Instrument panel (Passenger’s side fuse panel)

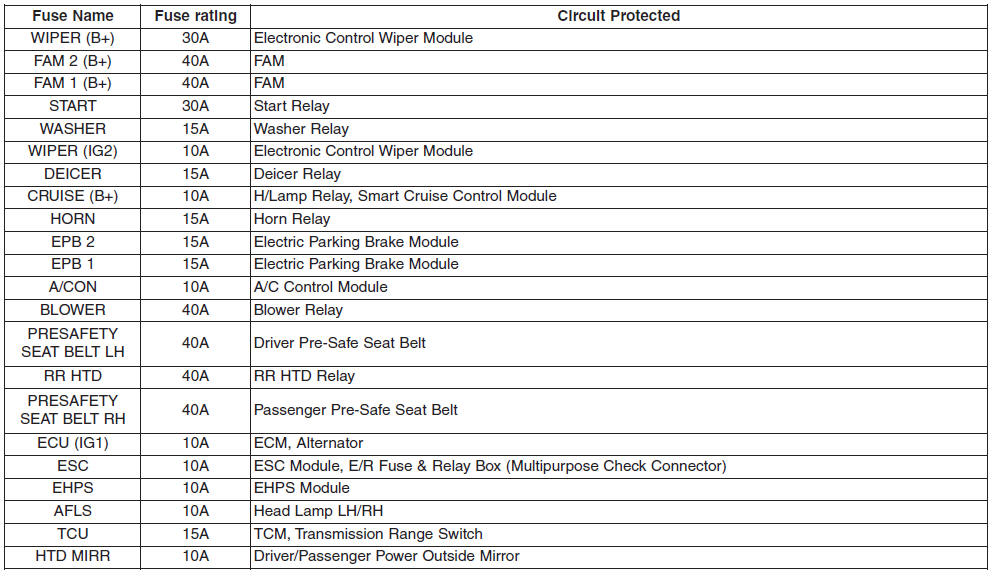

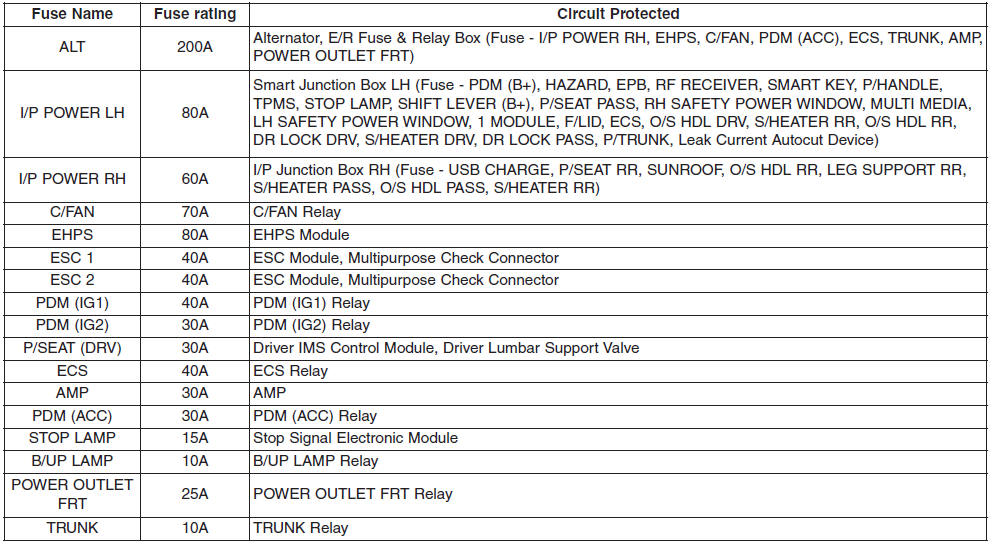

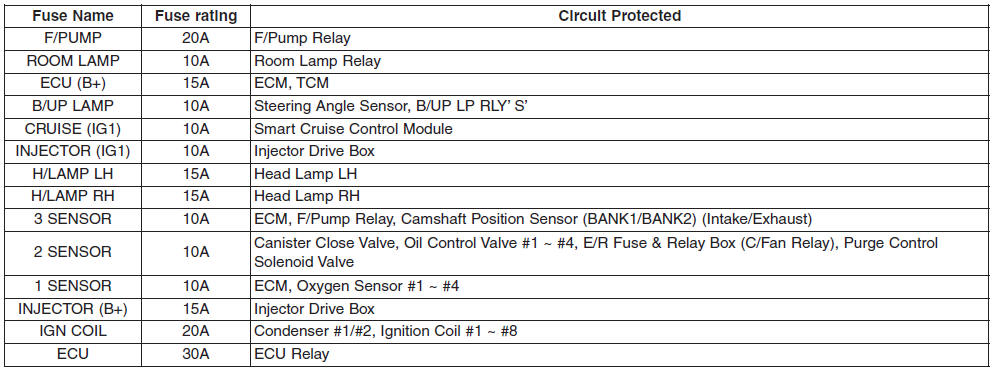

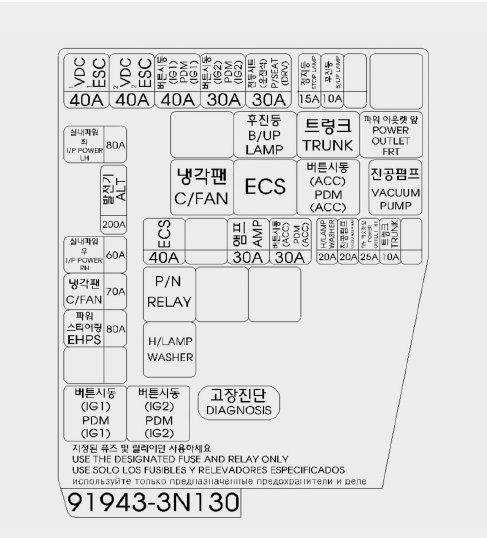

Engine compartment main fuse panel


Engine compartment main fuse panel

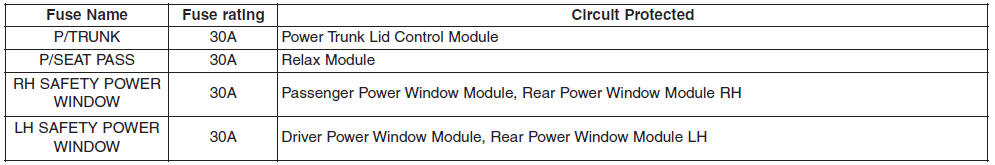

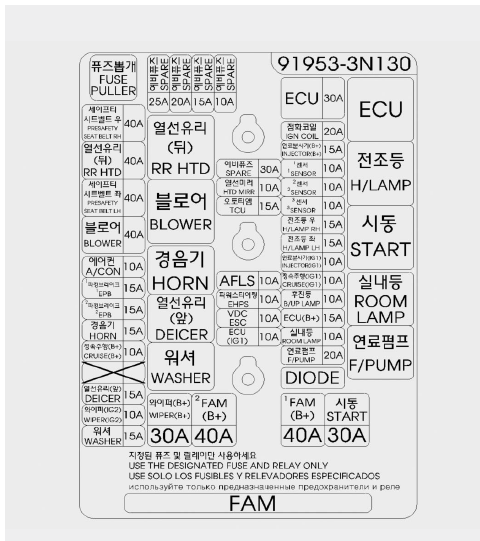

Engine compartment sub fuse panel
