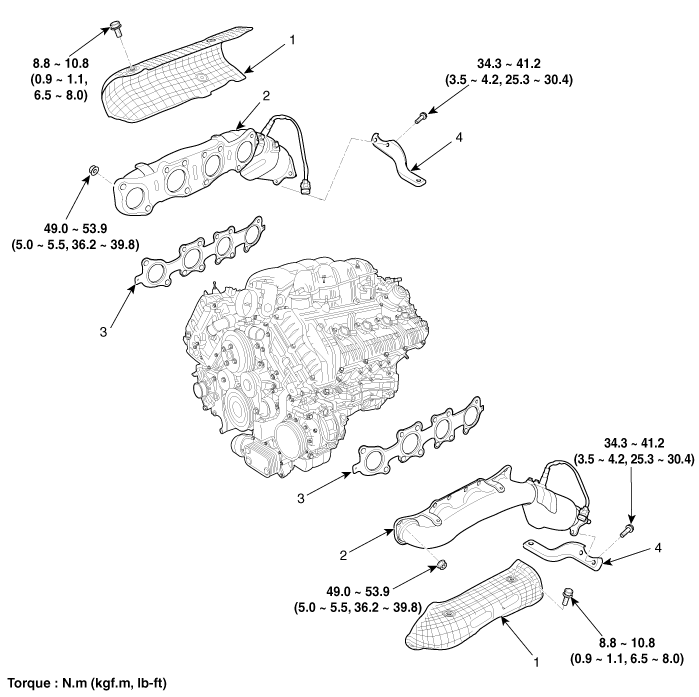

| Components |
| 1. Exhaust manifold heat protector 2. Exhaust manifold | 3. Exhaust manifold gasket 4. Exhaust manifold stay |
