Hyundai Equus: Emergency starting
Second generation VI (2009–2026) / Hyundai Equus 2009-2026 Owners Manual / What to do in an emergency / Emergency starting

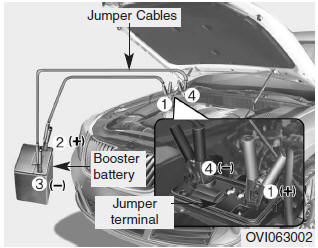

Connect cables in numerical order and disconnect in reverse order.
✽ NOTICE
Your vehicle has a battery in the trunk compartment, but when you jump start your vehicle, use the jumper terminal in the engine compartment.
If engine turns over normally but does not start
1. Check fuel level.
2. With the Engine Start/Stop Button in the OFF position, check all connectors at
ignition coils and spark plugs. Reconnect any that may be disconnected or loose.
3. If the en ...
Jump starting
Jump starting can be dangerous if done incorrectly. Therefore, to avoid harm
to yourself or damage to your vehicle or battery, follow the jump starting procedures.
If in doubt, we strongly recomme ...
