| Components |

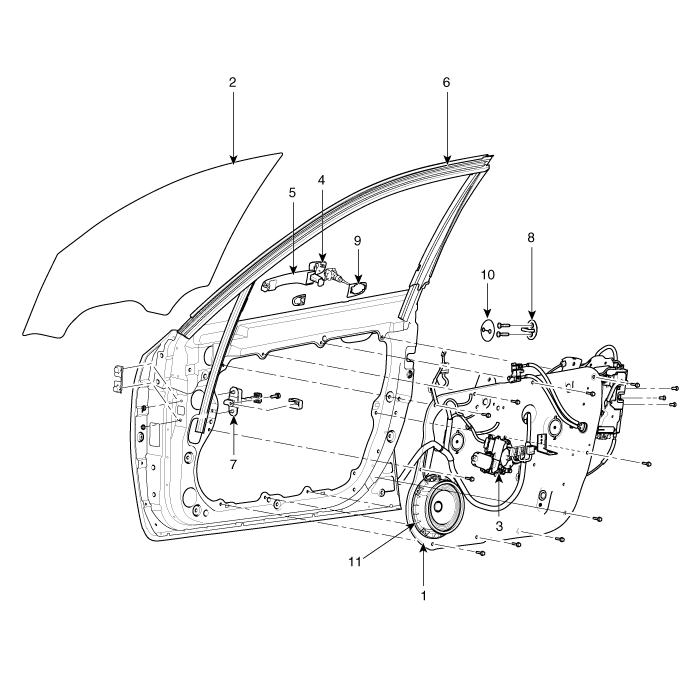

| 1. Door module 2. Window glass 3. Power window motor 4. Outside handle cover 5. Outside handle 6. Door panel | 7. Door checker 8. Door striker 9. Outside handle pad 10. Door striker cover 11. Door speaker |
Front Door
...
Repair procedures
Adjustment
Glass Adjustment
•
Check the glass run channel for damage or deterioration, and replace them if necessary.
1.
Remove the front door trim.
(Refer to F ...
