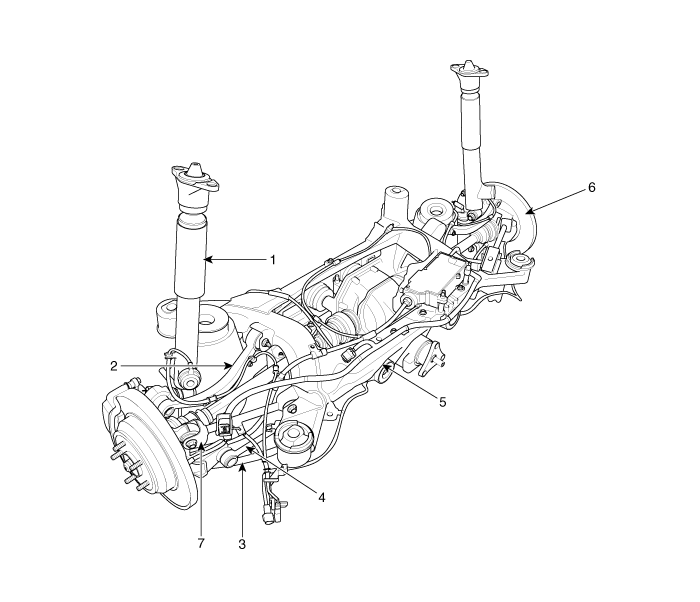

| Components Location |
| 1. Rear shock absorber 2. Rear upper arm 3. Rear trailing arm 4. Rear Assist arm | 5. Rear sub frame 6. Rear disk 7. Rear front upper arm |
Rear Shock Absorber Components and Components Location
Components
1. Insulator cap2. Lock nuts3. Bracket assembly4. Dust cover5. Bumper stopper6. Shock absorber
...
