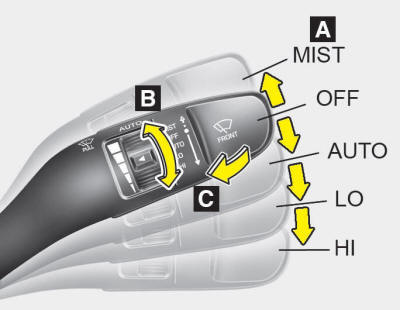

A : Wiper speed control
-MIST – Single wipe
-OFF – Off
-AUTO – AUTO control wipe
-LO – Low wiper speed
-HI – High wiper speed
B : Auto control wipe time adjustment
C :Wash with brief wipes
