WARNING - Windshield heating
Do not use the or
position during cooling operation
in extremely humid weather. The difference between the temperature of the outside
air and that of the windshield could cause the outer surface of the windshield to
fog up, causing loss of visibility could cause an accident resulting in serious
injury or death. In this case, set the mode selection knob or button to the
position and fan speed control knob
or button to a lower speed.
✽ NOTICE
If the engine temperature is still cold after starting, then a brief engine warm up period may be required for the vented air flow to become warm or hot.

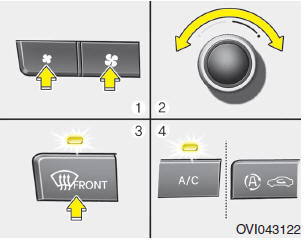

To defog inside windshield
1. Select desired fan speed.
2. Select desired temperature.
3. Press the defrost button ( ).
4. The outside (fresh) air position will be selected automatically.
If the outside (fresh) air position is not selected automatically, adjust the corresponding button manually.
If the position is selected, lower
fan speed is adjusted to a higher fan speed.

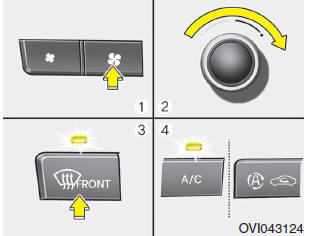

To defrost outside windshield
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defrost button ( ).
4. The outside (fresh) air position will be selected automatically.
If the position is selected, lower
fan speed is adjusted to a higher fan speed.
Damper Clutch Control Solenoid Valve Specifications
Specifications
Damper Clutch Control VFS
x Control type : Normal low type
Control Pressure kpa (kgf/cmx, psi)0~500.14 (0~5.1,0~72.54)Current value(mA)0~850 Internal resistance( ...
Photo Sensor Description and Operation
Description
The photo sensor is located at the wind shield glass.
The photo sensor contains a photovoltaic (sensitive to
sunlight) diode. The solar radiation received by its light receiving
p ...
3 Zone control button
1. Press the 3 zone button to operate the front passenger's temperature, rear
side temperature, and rear side mode individually. The indicator on the 3 zone button
will be illuminated. Press ...
