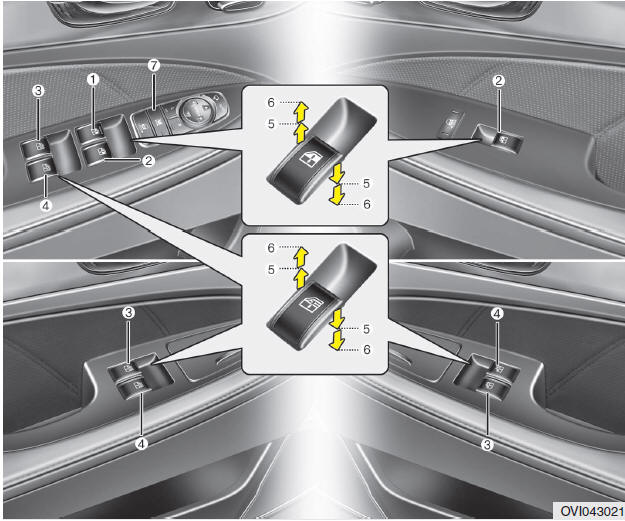

(1) Driver’s Door Power Window Switch
(2) Front Passenger’s Door Power Window Switch
(3) Rear Door (left) Power Window Switch and Curtain Switch (if equipped)
(4) Rear Door (right) Power Window Switch and Curtain Switch (if equipped)
(5) Window Opening and Closing
(6) Automatic Power Window up/down
(7) Power Window Lock Switch
✽ NOTICE
In cold and wet climates, power windows may not work properly due to freezing conditions.
