Hyundai Equus: Troubleshooting - Starting System - Engine Electrical System - Hyundai Equus VI 2009-2022 Service ManualHyundai Equus: Troubleshooting

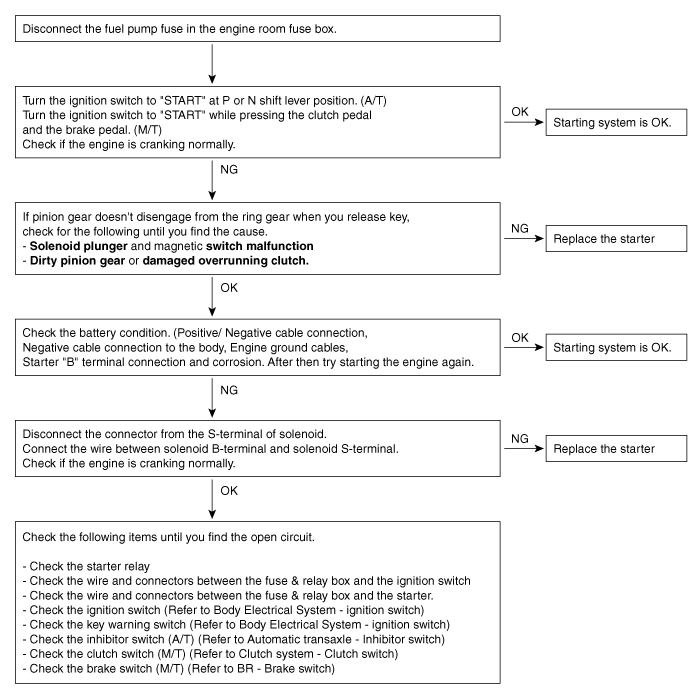

Troubleshooting

Х
The battery must be in good condition and fully charged for this troubleshooting.
