Hyundai Equus: Sunroof Sunshade Repair procedures
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Sunshade Repair procedures
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Sunshade Repair procedures
| Replacement |
| 1. |
Remove the sunroof assembly.
(Refer to Sunroof - "Sunroof Assembly") |
| 2. |

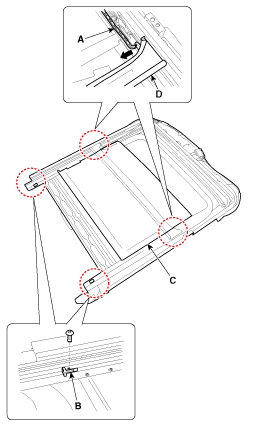

After loosening the mounting screw, then remove the drip link (A) and sunshade stopper (B). |
| 3. |
Remove the sunshade (C) and drip rail (D).
|
| 4. |
Install in the reverse order of removal. |
