Hyundai Equus: Steering Wheel Remote Controller (SWRC) Schematic Diagrams - Premium AVN System - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Steering Wheel Remote Controller (SWRC) Schematic Diagrams

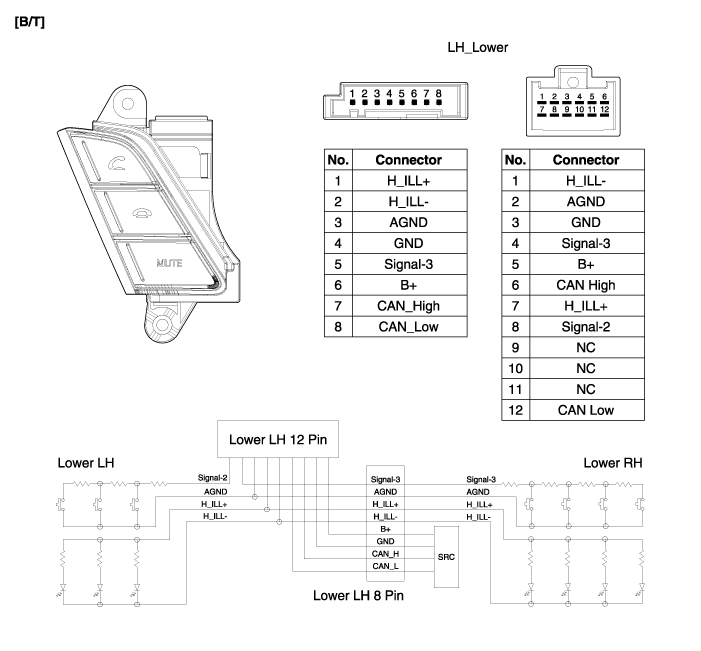

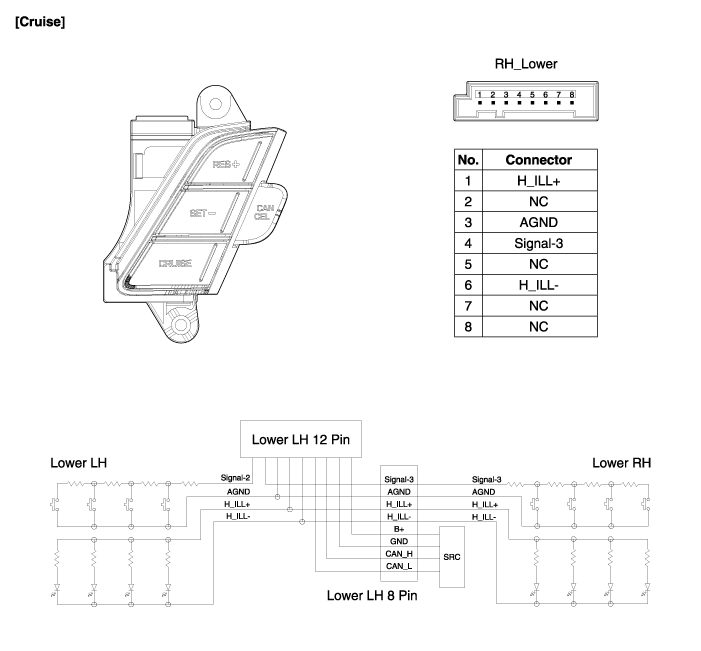

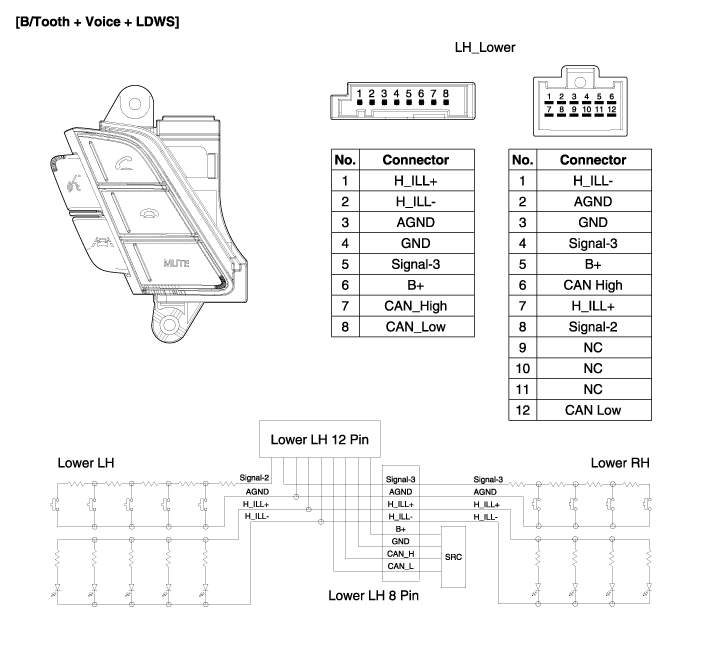

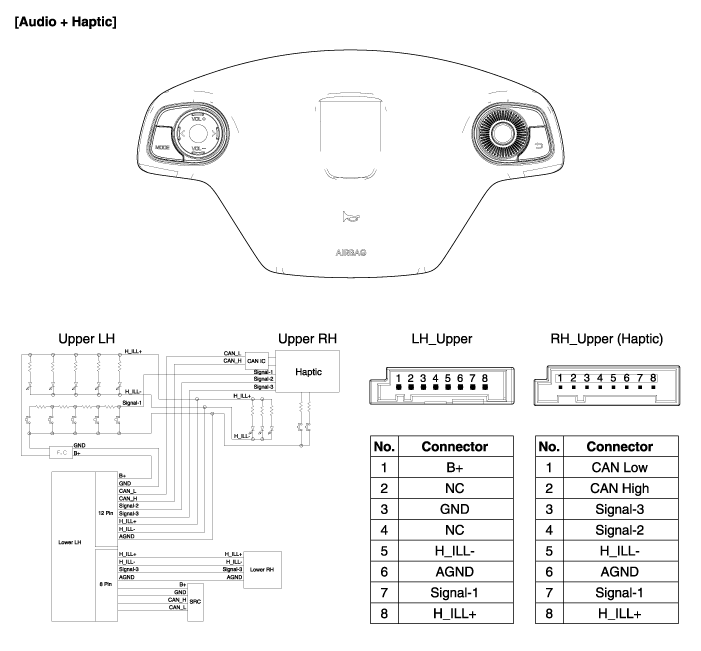

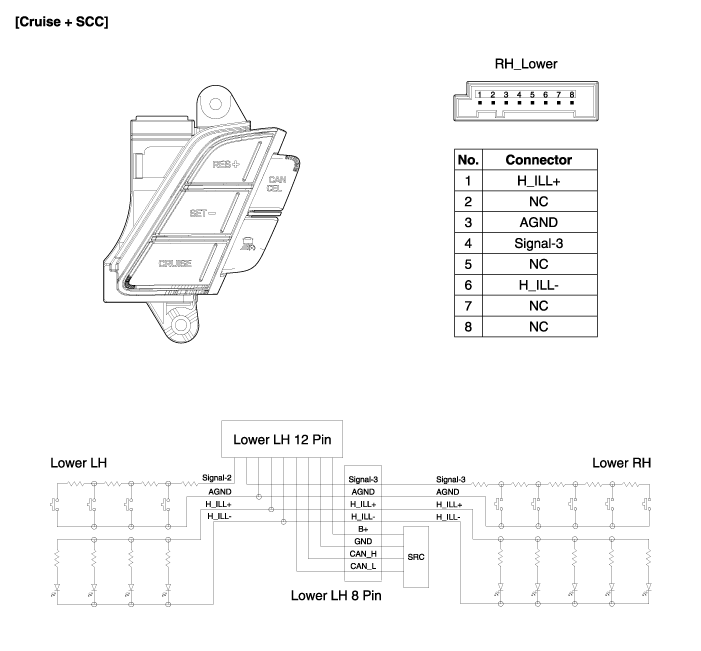

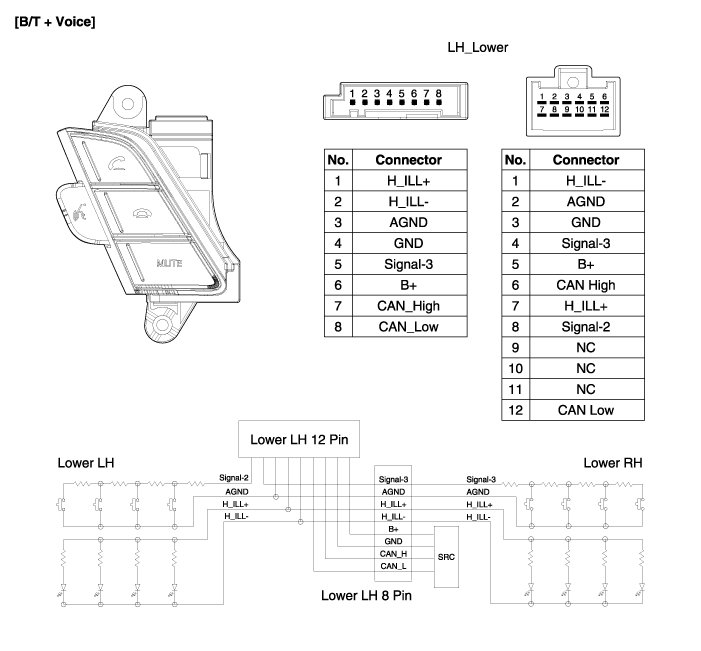

Circuit Diagram

    Steering Wheel Remote Controller (SWRC) Components and Components Location
    Components 1. Left Top Remote Control Switch (Audio)2. Right Top Remote Control Switch (Haptic)3. Left Bottom Remote Control Switch (Bluetooth+LDWS+Mute)4. Right Bottom Remote Control Switch (Cru ...

    Steering Wheel Remote Controller (SWRC) Description and Operation
    Description The steering wheel remote controller (SWR) is composed of four switches and the right top switch is equipped with the Body CAN communication module. The left bottom remote control ...
