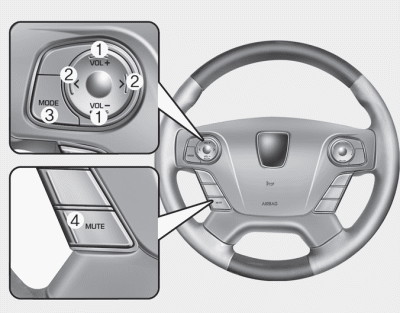

The steering wheel may incorporate the audio control buttons.
CAUTION
Do not operate audio remote control buttons simultaneously.
VOLUME (VOL + / - ) (1)
SEEK/PRESET ( /
) (2)
If the SEEK/PRESET button is pressed for 0.8 seconds or more, it will function as follows in each mode.
RADIO mode
It will function as the AUTO SEEK select button. It will SEEK until you release the button.
MEDIA mode
It will function as the FF/REW button.
If the SEEK/PRESET button is pressed for less than 0.8 seconds, it will function as follows in each mode.
RADIO mode
It will function as the PRESET STATION select buttons.
MEDIA mode
It will function as the TRACK UP/DOWN button.
MODE (3)
Press the MODE button to select Radio, disc, or AUX.
MUTE (4)
✽ NOTICE
Detailed information is described in a separately supplied manual.
