Hyundai Equus: Rear Seat Frame Assembly Repair procedures - Rear Seat - Body (Interior and Exterior) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Rear Seat Frame Assembly Repair procedures

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Frame Assembly Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

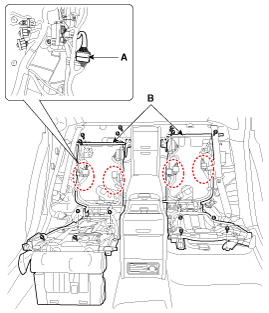

Disconnect the rear seat frame mounting connector (A).
3.
After loosening the mounting bolts and nuts, then remove the rear seat frame assembly (B).
Tightening torque :
Bolts : 16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)
Nuts : 12.7 ~ 18.6 N.m (1.3 ~ 1.9 kgf.m, 9.4 ~ 13.7 lb-ft)

4.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damage clips.
[Leg support replacement]
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

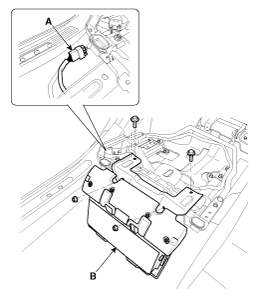

Disconnect the connector (A).
3.
After loosening the mounting bolts and nuts, then remove the leg support (B).
Tightening torque :
Bolts : 16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)
Nuts : 12.7 ~ 18.6 N.m (1.3 ~ 1.9 kgf.m, 9.4 ~ 13.7 lb-ft)

4.
Install in the reverse order of removal.
    Rear Seat Frame Assembly Components and Components Location
    Component Location 1. Rear seat frame assembly [LH]2. Rear seat frame assembly [RH] ...
