Hyundai Equus: Rear Disc Brake Components and Components Location - Brake System - Brake System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Rear Disc Brake Components and Components Location

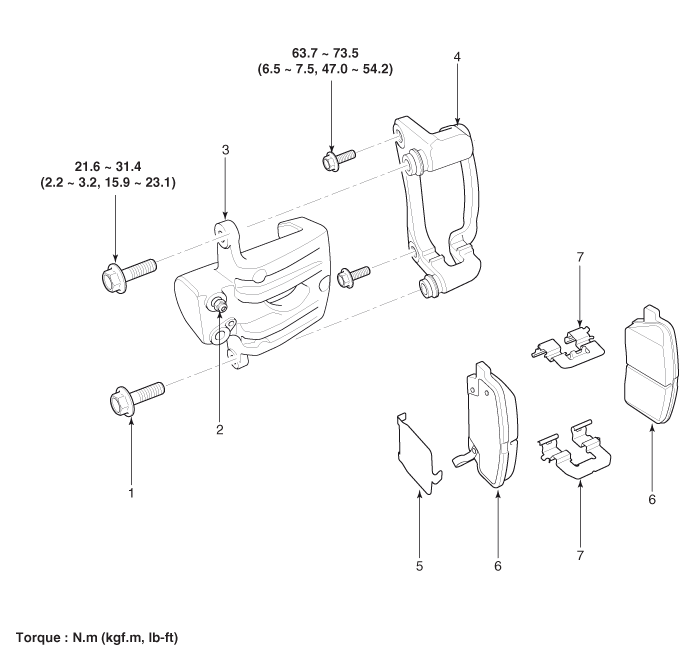

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper body
4. Caliper bracket
5. Inner pad shim
6. Brake pad
7. Pad retainer

    Front Disc Brake Repair procedures
    Removal 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Remove the brake hose mounting bracket. (Knuckle mounting pa ...

    Rear Disc Brake Repair procedures
    Removal 1. Remove the rear wheel & tire. Tightening torque : 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Loosen the hose eye-bolt (B) and caliper mounting bolts (C), th ...

    See also:

    Components and Components Location
    Components Location 1. Front strut assembly2. Front brake disc3. Tie rod end assembly4. Front sub frame5. Tension arm6. Lateral arm7. Front knuckle assembly ...

    Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams
    Circuit Diagram ...

    Engine number
    The engine number is stamped on the engine block as shown in the drawing. ...
