Hyundai Equus: Rear Differential Carrier Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Rear Differential Carrier Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Rear Differential Carrier Components and Components Location
| Component |

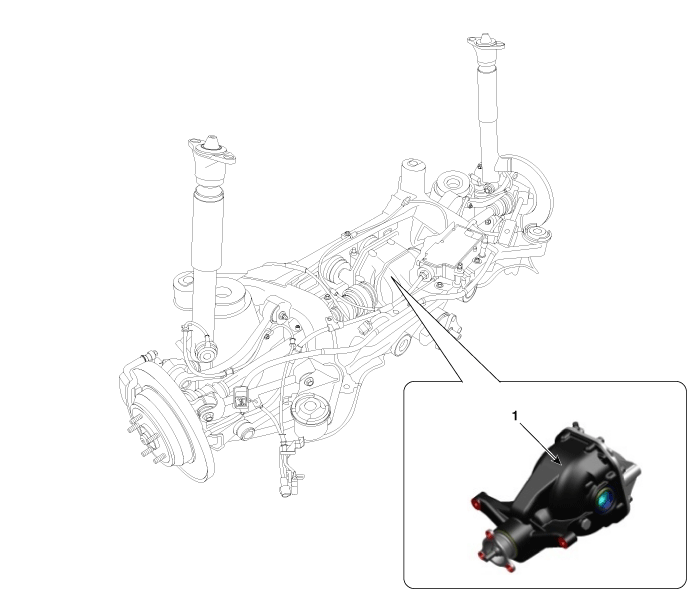

| 1. Rear differential carrier assembly |
| Component |

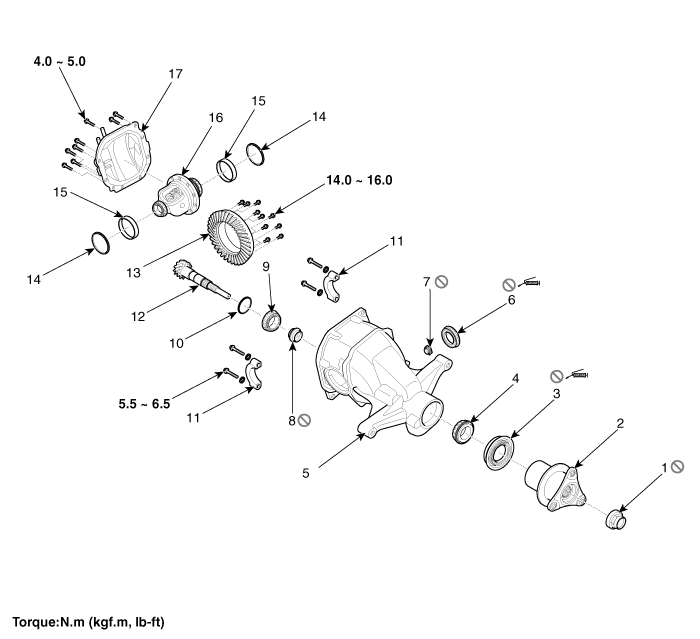

| 1. Pinion lock nut 2. Companion flange 3. Pinion oil seal 4. Pinion front bearing 5. Differential case 6. Side oil seal | 7. Drain plug 8. Pinion bearing spacer 9. Pinion rear bearing 10. Inner bearing adjustment shims 11. Bearing cap 12. Drive gear | 13. Ring gear 14. Spacer 15. Side bearing outer race 16. Gear carrier assembly 17. Differential rear cover |
Rear Differential Carrier Repair procedures
Replacement
1.
Drain off oil from Rear differential carrier.
2.
Remove the propeller shaft.
(Refer to Propeller Shaft Assembly - "Propeller Shaft")
3.
Remove the rear drive shaft.
(Re ...
