Hyundai Equus: Power Window Switch Components and Components Location - Power Windows - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Power Window Switch Components and Components Location

Components

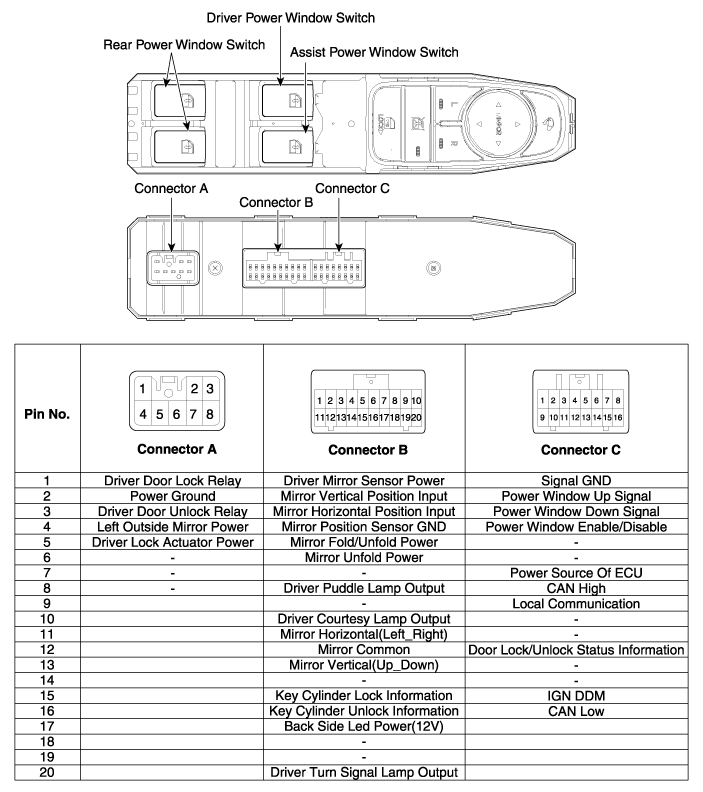

Power Window Main Switch

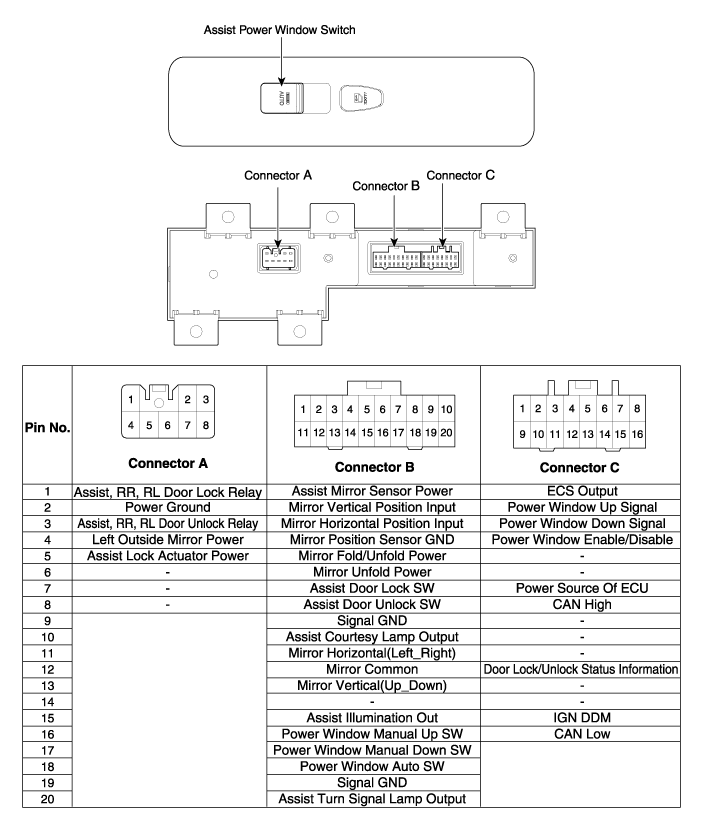

Assist Power Window Switch

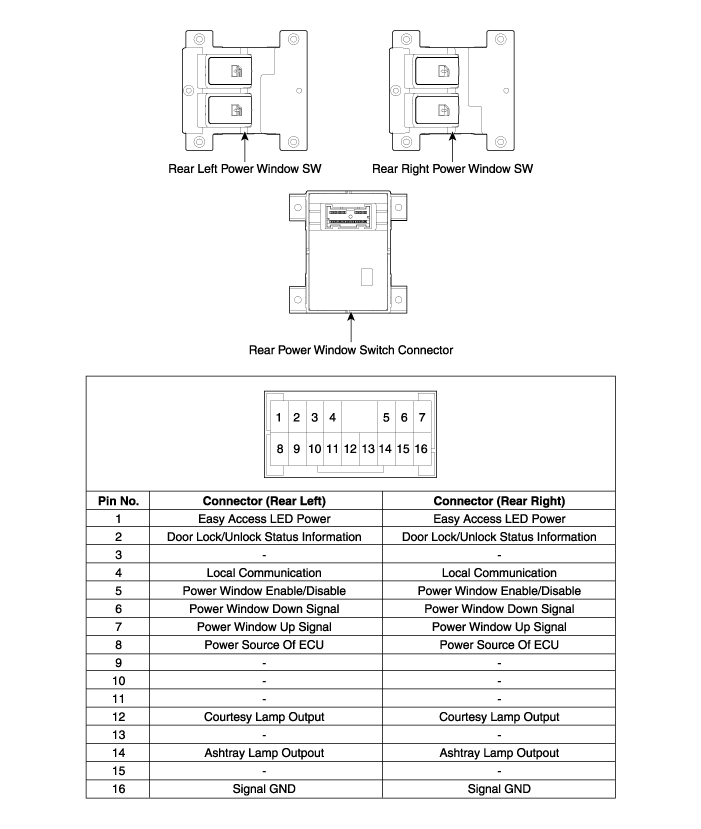

Rear Power Window Switch
