Hyundai Equus: Output Speed Sensor Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Output Speed Sensor Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Output Speed Sensor Schematic Diagrams

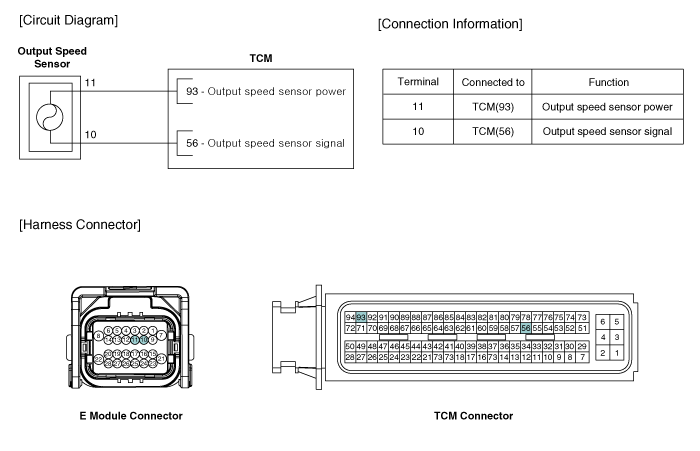

| Circuit Diagram |
Output Speed Sensor Specifications
Specifications
x Type: Hall effect sensor
x Specifications
Operation condition (°C)°F((-)40~150)) -40~302Air gap(mm)in.1.3(0.0512)Output voltageHigh1.4Low0.7
...
Output Speed Sensor Repair procedures
Inspection
1.
Check signal waveform of output speed sensor using the GDS.
Specification: Refer to "Signal Wave Form" section.
...
