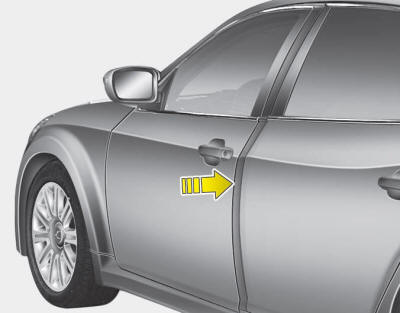

To lock the doors, press the button on the outside door handle while carrying the Smart Key with you or press the Door Lock button on the Smart Key.
Put your hand in the driver’s outside door handle while carrying the Smart Key with you or press the Door Unlock button on the Smart Key, the driver’s door will unlock. If you put your hand in the front passenger’s outside door, all doors will unlock. If you press the Door Unlock button on the Smart Key again within four seconds, then all the doors will unlock.
Once the doors are unlocked, they may be opened by pulling the door handle.
When closing the door, push the door by hand. Make sure that doors are closed securely.
✽ NOTICE
You can change the system to the central door unlock mode in the User Settings menu of the LCD Display to unlock all the doors when you press the unlock button one time.
✽ NOTICE
WARNING
Power Door Latch (if equipped)
If a door isn’t closed completely but is closed to the first detent position, the door will close automatically.
CAUTION
To reduce the risk of injury:
