Hyundai Equus: Muffler Repair procedures - Intake And Exhaust System - Engine Mechanical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Muffler Repair procedures

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Engine Mechanical System / Intake And Exhaust System / Muffler Repair procedures

Removal
1.

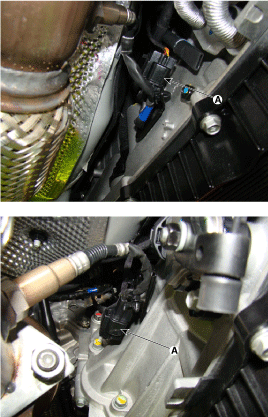

Disconnect the rear oxygen sensor (HO2S) connector (A) on LH and RH side.

2.
Remove the front muffler (A) on LH and RH side.
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

3.
Remove the center muffler (B) after removing the tunnel stay (A).
Tightening torque :
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

4.
Remove the main muffler (A).

5.
Installation is reverse order of removal.
